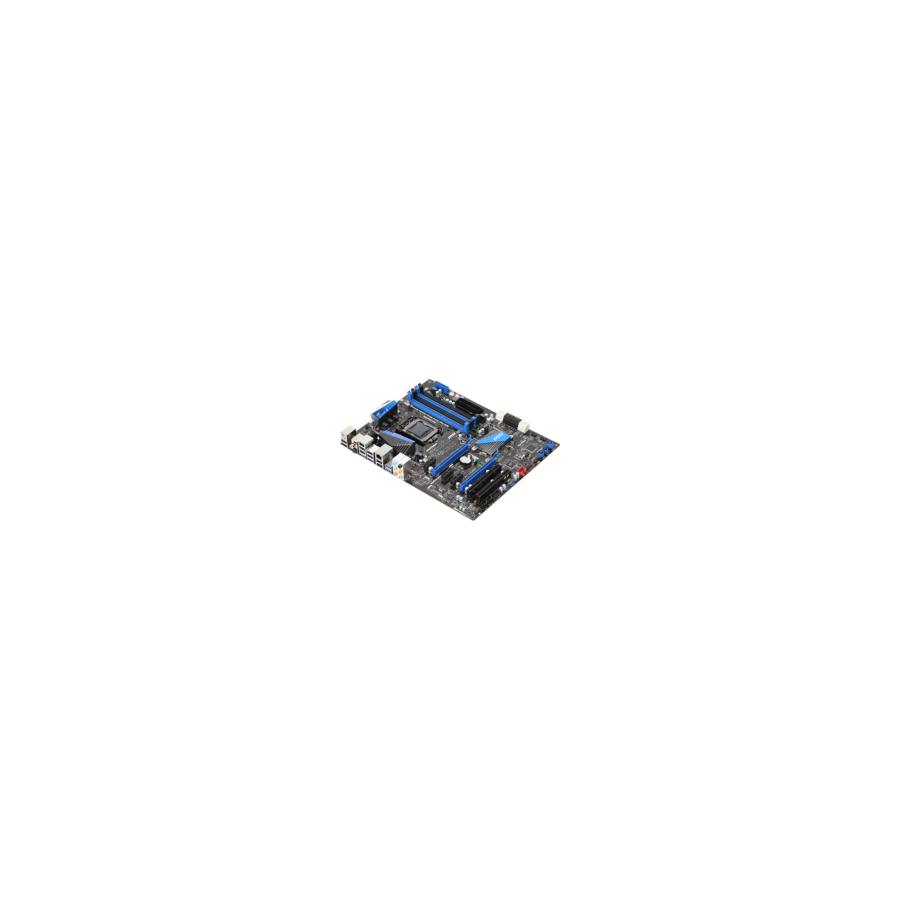

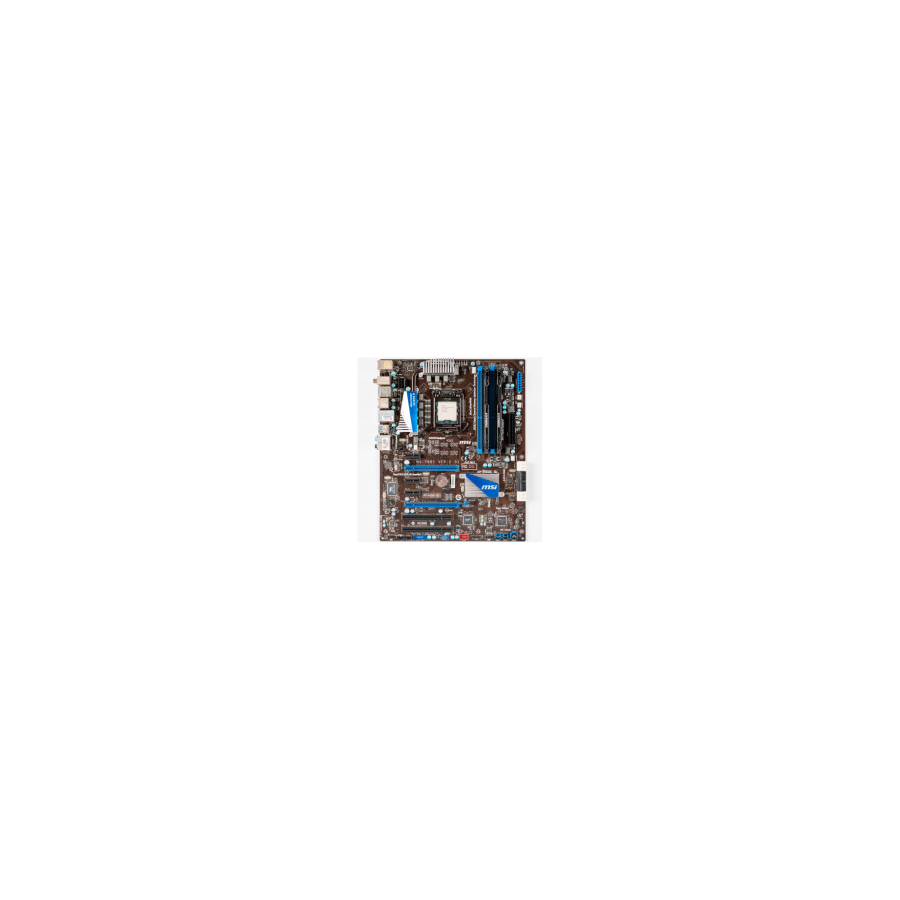

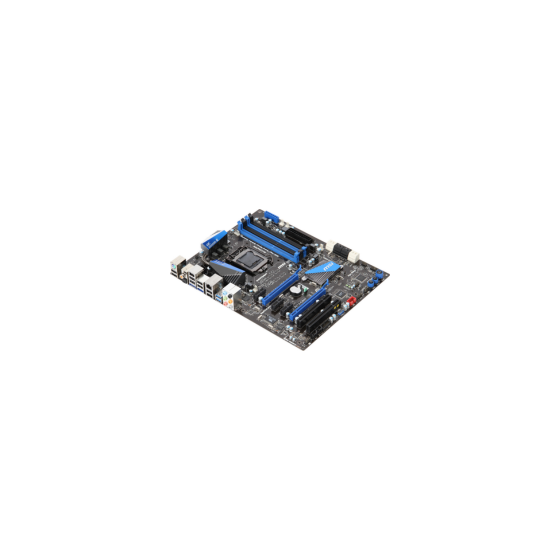

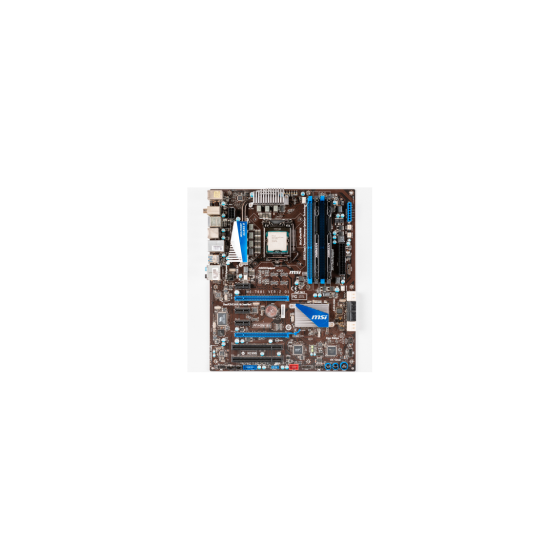

MSI P67A-GD65 (B3) (SOCKET LGA1155 & INTEL P67 EXPRESS CHIPSET)

Model: MSI MS-7681 (P67A-GD65 B3 Revision)

CPU: Intel® Socket 1155 for 2nd Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 Processors; Supports Intel® Turbo Boost Technology 2.0.

Chipset: Intel® P67 Express Chipset (B3 Stepping revision correcting the early SATA controller hardware degradation bugs).

Memory: 4 x 240-pin DDR3 DIMM slots; Max capacity up to 32GB; Dual-Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP). Supported non-ECC, unbuffered overclocked (O.C.) frequencies: 2133(O.C.) / 1866(O.C.) / 1600(O.C.) MHz, and native 1333 / 1066 MHz.

Graphic: None integrated on-board (Requires a dedicated graphics card / discrete GPU). Note: While Sandy Bridge processors contain integrated graphics, the Intel P67 chipset lacks internal display routing circuitry, meaning video output ports are omitted on the back panel. Expansion Slots: * 2 x PCI Express 2.0 x16 slots (Fully compliant with PCI Express Bus specification v2.0).

• Single Card Mode: Runs at x16 bandwidth on the primary top slot.

• Dual Card Mode: Lanes automatically bifurcate into dual x8 / x8 bandwidth.

• 3 x PCI Express 2.0 x1 slots.

• 2 x Legacy PCI slots (32-bit PCI Local Bus Master compliant).

  Multi-GPU Support: Supports NVIDIA® SLI™ Technology and AMD® CrossFireX™ Technology.

Storage: Dual-controller storage matrix layout:

• Intel® P67 Chipset Controller: * 2 x SATA III (SATA 6Gb/s) ports (SATA1 & SATA2, White color indicators).

  • 4 x SATA II (SATA 3Gb/s) ports (SATA3 to SATA6, Black color indicators).

  • Supports RAID 0, RAID 1, RAID 5, and RAID 10 via Intel Rapid Storage Technology.

• Marvell® SE9128 Host Controller: * 2 x SATA III (SATA 6Gb/s) ports (SATA7 & SATA8, White color indicators).

  • Supports RAID 0 and RAID 1 configurations.

• JMicron® JMB362 Controller: * 2 x eSATA II 3Gb/s ports located on the Rear Back Panel.

  LAN: Realtek® RTL8111E Gigabit Ethernet Controller (10/100/1000 Mb/s); 1 x RJ45 port featuring integrated Fast Ethernet MAC and PHY architecture on a dedicated PCIe bus lane.

  Audio: Realtek® ALC892 8-Channel (7.1) High Definition Audio CODEC:

• Compliance with Azalia 1.0 multi-channel audio layout specifications.

• Lossless True Blu-ray audio content protection support.

• Premium audio capacitor configuration with auto-jack sensing and independent multi-streaming support.

  USB Ports: Dynamic multi-controller USB layout (handled by Intel P67 and NEC® uPD720200F1 chips):

• Rear Panel I/O: 2 x USB 3.0 ports (Blue, NEC chip) + 8 x USB 2.0/1.1 ports (Black).

• Internal Headers: 1 x USB 3.0 header (Supports 2 additional front panel ports via NEC chip) + 2 x USB 2.0 headers (Supports 4 additional internal/front panel USB ports).

Software Features

MSI/Manufacturer Exclusive Software

• MSI Control Center II: Comprehensive Windows platform layout tool for real-time monitoring, CPU voltage profiling, and on-the-fly component tuning.

• MSI ClickBIOS Utility: Allows full structural configuration of the system's UEFI environment straight from the desktop workspace.

• MSI Super Charger: High-amperage internal USB layout protocol optimized for accelerated mobile device battery charging even when the PC is powered off.

• MSI Live Update 5: Automatic update driver platform for matching ecosystem firmware, utilities, and patches.

UEFI BIOS

• MSI ClickBIOS implementation (True graphical UEFI layout engine).

• 64Mbit Flash ROM matrix architecture.

• Multi-language layout navigation with extensive pointer mouse compliance.

• Integrated backup utilities with secure multi-profile setting tables.

Manufacturer Special Features

• MSI Military Class II Components: SFC (Super Ferrite Choke) architecture offering up to 30% higher current capacity, paired with solid tantalum core Hi-c CAPs and Solid Capacitors for an extended operational lifespan.

• MSI OC Genie II: Instant one-second automated hardware overclocking mechanism triggered via an on-board hardware button or direct BIOS toggle.

• MSI Active Phase Switching (APS): Automated power-saving hardware system that mechanically cuts off phase delivery during low processing loads to save raw power.

• THX TruStudio Pro Certification: Premium software audio enhancement layer ensuring high-fidelity movie, gaming, and studio multi-channel acoustics.

• Onboard Physical Buttons: Direct-contact tactile buttons mounted to the PCB (Power, Reset, and OC Genie toggle).

• V-Check Points: Integrated physical multitester tracking points on the motherboard layout to measure precise Vcore, VTT, DDR, and PCH voltages.

Back I/O Ports

• 1 x PS/2 Keyboard/Mouse combo port

• 1 x Clear CMOS button (Hardware flush switch with recess protection)

• 1 x Coaxial S/PDIF Out audio port

• 1 x Optical S/PDIF Out audio port

• 2 x eSATA II 3Gb/s ports (Red indicators)

• 1 x IEEE 1394a Firewire port

• 1 x RJ-45 Gigabit Ethernet port

• 2 x USB 3.0/2.0 ports (Blue color)

• 8 x USB 2.0/1.1 ports (Black color)

• 6 x Audio jacks (Line In, Front L/R, Mic In, Center/Subwoofer, Rear L/R, Side L/R)

Internal I/O Ports

• 1 x 24-pin ATX Main Power connector

• 1 x 8-pin ATX 12V CPU Power connector

• 1 x 4-pin CPU Fan connector

• 4 x 3-pin System Fan connectors

• 4 x Serial ATA III 6Gb/s connectors (White)

• 4 x Serial ATA II 3Gb/s connectors (Black)

• 1 x USB 3.0 connector/header (Supports 2 additional USB 3.0 ports)

• 2 x USB 2.0 connectors/headers (Supports 4 additional USB 2.0 ports)

• 1 x Front Panel Audio connector (AAFP)

• 1 x Front Panel System Matrix header (JFP1 / JFP2)

• 1 x IEEE 1394a Firewire internal header

• 1 x Serial Port (COM) header

• 1 x Trusted Platform Module (TPM) header

• 1 x Voice Genies voice-control expansion header (optional kit)

• 1 x Chassis Intrusion header

• 1 x Set of V-Check structural voltage points

• 1 x Physical Power button

• 1 x Physical Reset button

• 1 x Physical OC Genie button

Additional Product Information

Accessories: * 1 x Motherboard Driver & Software Support DVD Disc

• 1 x MSI High-Durability padded I/O Shield backplate

• 4 x Right-angle SATA data cables

• 1 x Flexible SLI bridge interconnect ribbon cable

• 1 x Set of MSI M-Connectors (For quick single-block front panel assembly)

• 1 x Set of V-Check test leads

• 1 x User Guide Manual & Quick Deployment Guide

BIOS: 64 Mb Flash EEPROM, AMI UEFI BIOS, PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b power profile support.

Manageability: DMI 2.0, WOL (Wake-on-LAN) by PME, PXE remote boot capabilities, Wake-on-Ring.

Operating System: Microsoft® Windows® 10 (64-bit compatible via legacy architecture drivers), Windows® 8/8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows® Vista, Windows® XP.

Form Factor: ATX Form Factor; 12.0 inches x 9.6 inches (30.4 cm x 24.4 cm); Standard 9-mounting-hole chassis layout layout footprint.

Comprehensive Architecture & Performance Deep-Dive

The Architecture of the Intel P67 Express Chipset

The engineering framework behind the MSI P67A-GD65 (B3) relies on the structural decoupling of processing logic and memory interfaces introduced during the Sandy Bridge era. Rather than using traditional separate North and South Bridge silicon configurations, this platform concentrates core logical routing directly inside the CPU package.

The central processor directly manages the primary graphical subsystem pipelines and DDR3 multi-channel arrays. This direct connection leaves the Intel P67 Hub to independently handle secondary high-speed data streams like storage arrays, peripheral expansion networking, and legacy I/O buses. Communication between the processor and the P67 hub travels through a dedicated DMI 2.0 (Direct Media Interface) link, ensuring balanced data speeds across all system buses without performance drops.

Dual-Channel DDR3 Memory Signal Layout

The motherboard design implements a standard, low-latency 4-slot layout organized as a 128-bit parallel memory interface. By staggering signal traces evenly across the PCB layout, the trace lengths match precisely from the memory lanes down into the processor socket pins.

Populating matching channels (such as DIMM slots 1 and 3, indicated by matching color schemes) opens up two independent 64-bit memory pipelines. This layout provides massive overall data bandwidth to feed modern system applications. When working with Extreme Memory Profile (XMP) presets, this optimized layout stabilizes custom voltage levels up to 2133MHz without risking signal reflection or electromagnetic noise.

High-Performance PCI Express Multi-GPU Lane Bifurcation

The platform handles dedicated 16-lane graphics bandwidth directly from the integrated controller in the LGA1155 CPU structure. When a single heavy-duty card is inserted into the primary dark blue slot, the lane configuration routes a full x16 connection to maximize processing bandwidth.

If a multi-card NVIDIA SLI or AMD CrossFireX system is detected, onboard electrical hardware switches split the primary processing path into a dual x8 / x8 layout. Because this routing ties directly back into the CPU controller lanes, latency remains minimal, giving enthusiasts a perfectly balanced frame rendering experience.

Military Class II Component Stability

To ensure long-term durability under heavy computing workloads, MSI builds the P67A-GD65 with an optimized power delivery subsystem using premium component choices:

• SFC (Super Ferrite Choke): Uses a high-permeability iron-ferrite core material. This custom metallurgy increases electrical efficiency by up to 10% and improves maximum current capacity by nearly 30% compared to traditional chokes.

• Hi-c CAPs: Built around an ultra-stable tantalum core, these low-profile capacitors deliver exceptionally low Equivalent Series Resistance (ESR). They are specifically chosen to filter clean, ripple-free power to the CPU core during voltage spikes.

• Solid Capacitors: Featuring an aluminum core design, these components eliminate the risk of leaking or bursting over time. They boast an extended operational lifespan of up to 10 years, even when running under demanding workspace temperatures.
