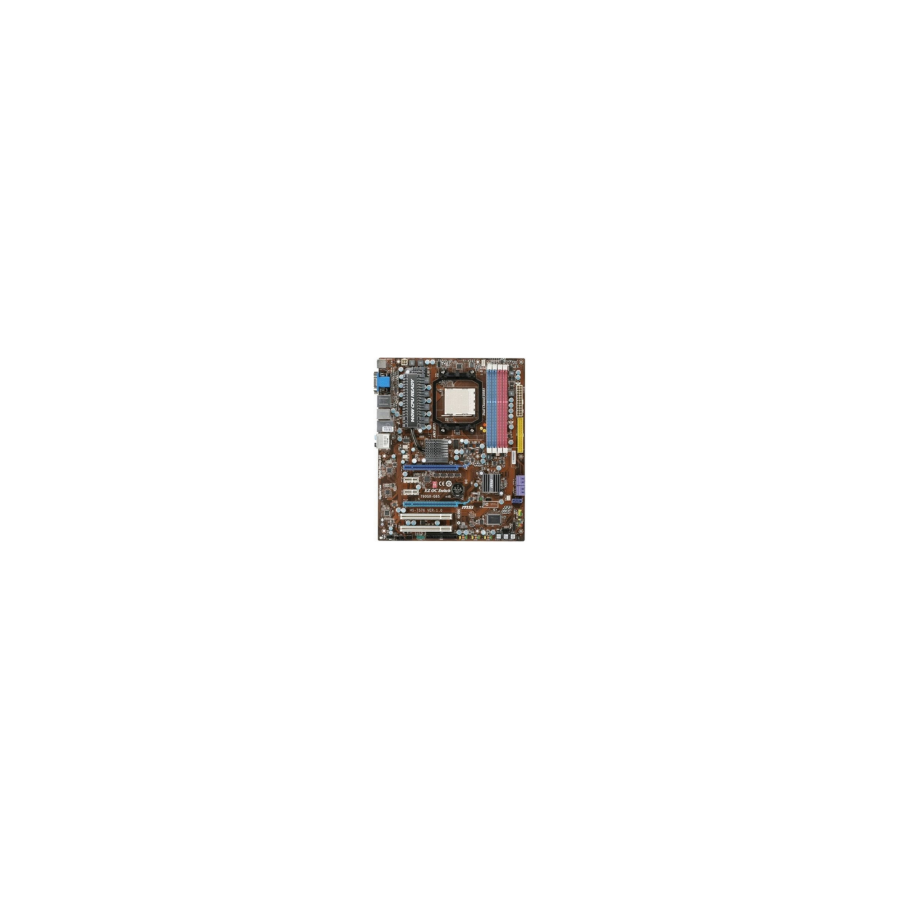

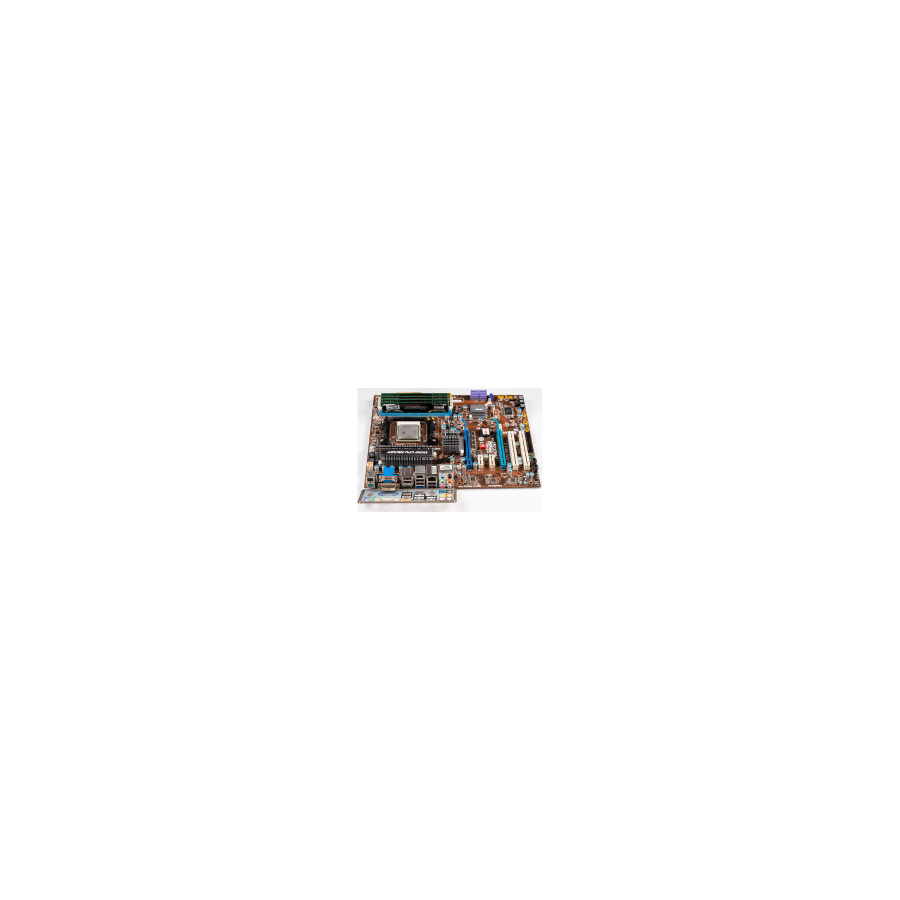

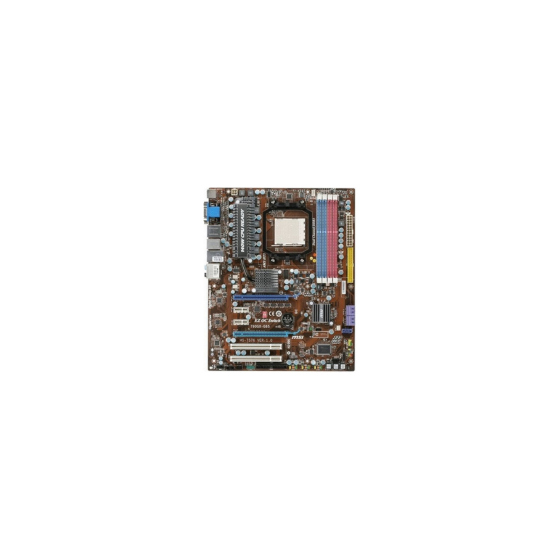

MSI 790GX-G65 (SOCKET AM3 & AMD 790GX/SB750 CHIPSET)

Model: MSI MS-7576 (790GX-G65)

CPU: Socket AM3; Supports AMD® Phenom™ II / Athlon™ II / Sempron™ processors; Supports high-performance HyperTransport 3.0 up to 5200MT/s; Supports CPU thermal design power (TDP) up to 140W.

Chipset: AMD® 790GX North Bridge + AMD® SB750 South Bridge

Memory: 4 x 240-pin DDR3 DIMM slots; Max capacity up to 16GB; Dual-Channel Memory Architecture; Supports non-ECC, unbuffered DDR3 1.5V modules. Supported frequencies: 1600(O.C.) / 1333 / 1066 / 800 MHz.

Graphic: Integrated ATI Radeon™ HD 3300 DirectX 10 graphics processor. Dedicated onboard 1Gbit (128MB) DDR3 SidePort memory for hardware-accelerated graphics acceleration. Maximum shared memory up to 512MB. Multi-VGA output options across 3 ports with maximum resolutions:

• HDMI: Max resolution 1920 x 1080 @ 60Hz.

• DVI-D: Max resolution 1920 x 1200 @ 60Hz (Dual-Link).

• D-Sub (VGA): Max resolution 2048 x 1536 @ 75Hz.

• Note: Simultaneous output across DVI-D and HDMI is not supported. Expansion Slots: * 2 x PCI Express 2.0 x16 slots (Slots configured as 1 x Dark Blue and 1 x Light Blue).

  • Single Card Mode: 1 x x16 bandwidth running on the main dark blue slot.

  • Dual Card Mode: Lanes automatically re-route to standard dual x8 / x8 bandwidth.

• 2 x PCI Express 2.0 x1 slots.

• 2 x PCI slots (Supports 3.3V / 5V PCI bus interface standard).

  Multi-GPU Support: Supports AMD CrossFireX™ Technology and ATI Hybrid CrossFireX™ Technology.

Storage: AMD® SB750 Controller architecture:

• 5 x Serial ATA II (SATA 3Gb/s) ports (SATA1 to SATA5).

• 1 x eSATA II 3Gb/s port located on the Rear Back Panel.

• 1 x IDE (Ultra DMA 66/100/133) port handled by SB750 (Supports up to 2 legacy IDE devices).

• Supports RAID 0, RAID 1, RAID 5, RAID 10, and JBOD configurations across SATA storage ports.

  LAN: Realtek® RTL8111DL Gigabit Ethernet Controller (10/100/1000 Mb/s); Compliance with PCI Express Bus specification v1.0a; Integrated Fast Ethernet MAC and PHY.

  Audio: Realtek® ALC889 8-Channel (7.1) High Definition Audio CODEC:

• True Blu-ray Lossless Audio content protection support.

• Compliant with Azalia 1.0 specifications.

• Flexible independent multi-streaming with auto jack sensing.

  USB Ports: Total of 12 USB 2.0/1.1 ports handled by the AMD® SB750 chip:

• Rear Panel I/O: 6 x USB 2.0 ports.

• Internal Mid-board Headers: 3 x USB 2.0 headers (Supports 6 additional front panel USB ports).

Software Features

MSI/Manufacturer Exclusive Software

• MSI Control Center Utility (Real-time monitoring, engine profiling, and fan speed fine-tuning)

• MSI Live Update (Auto-scans and upgrades drivers, system firmware, and utilities)

• MSI Winki Edition Core (Instant-on Linux-based environment for fast web, messaging, and storage access)

• AMD OverDrive™ Utility Integration Support

UEFI BIOS

• Legacy AMI BIOS layout (Not UEFI core architecture)

• 8Mbit Flash ROM matrix

• PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b power architecture profiles

• M-Flash Module: Easily back up or flash firmware files via storage media drives

Manufacturer Special Features

• MSI Active Phase Switching (APS): Smart power-saving architecture that dynamically alters VRM usage depending on current processing loads.

• Easy OC Switch: Physical onboard structural toggle switches allowing direct hardware CPU base clock overclocking without needing access to BIOS screens.

• Onboard Physical Buttons: Tactile Power, Reset, and Clear CMOS switches mounted natively on the PCB.

• SidePort Memory: Independent onboard 128MB DDR3 memory pool optimized specifically to accelerate integrated HD 3300 operations.

• MSI Solid Capacitors: High-stability structural components featuring lower ESR and longer lifespan ratings over standard capacitors.

Back I/O Ports

• 1 x PS/2 Keyboard or Mouse combo port

• 1 x D-Sub (VGA) port

• 1 x DVI-D port

• 1 x HDMI port

• 1 x eSATA II 3Gb/s port

• 1 x RJ45 Gigabit LAN port

• 6 x USB 2.0/1.1 ports

• 1 x Optical S/PDIF Out port

• 6 x Audio jacks (Line In, Front L/R, Mic In, Center/Subwoofer, Rear L/R, Side L/R)

Internal I/O Ports

• 1 x 24-pin ATX main power connector

• 1 x 4-pin ATX 12V CPU power connector

• 1 x 4-pin CPU Fan header

• 3 x 3-pin System Fan headers

• 5 x Serial ATA II 3Gb/s connectors

• 1 x ATA133 IDE connector (Supports 2 IDE devices)

• 1 x Floppy disk drive (FDD) connector

• 3 x USB 2.0 headers (Supports 6 additional USB ports)

• 1 x Front panel audio header

• 1 x Front panel system cluster chassis header (JFP1 / JFP2)

• 1 x Chassis intrusion switch header

• 1 x CD-In internal analog audio header

• 1 x S/PDIF-Out expansion header

• 1 x Serial Port (COM) header

• 1 x TPM (Trusted Platform Module) header

• 1 x Hardware Easy Overclocking Switch array

Additional Product Information

Accessories: * 1 x Motherboard Driver & Utility Installation Disc

• 1 x MSI High-Durability I/O Shield backplate

• 2 x Serial ATA data cables

• 1 x ATA133 IDE ribbon cable

• 1 x User Guide manual

BIOS: 8Mb Flash ROM, AMI BIOS, PnP, DMI, ACPI, SM BIOS.

Manageability: DMI 2.0, WOL (Wake-on-LAN) by PME, PXE boot function, Wake-on-Ring.

Operating System: Microsoft® Windows® 7 (32-bit/64-bit), Windows® Vista (32-bit/64-bit), Windows® XP (32-bit/64-bit).

Form Factor: ATX Form Factor; 12.0 inches x 9.6 inches (30.4 cm x 24.5 cm); Secure 9-hole implementation footprint.

✔ Some units – Packaging in good/new condition.

⚠ Some units – Packaging may show signs of aging (dust, minor scratches / dents, faded labels) or missing original boxes due to older stock.

🔧 Rest assured, all products are fully functional unless stated otherwise. We check quality before shipping! Thank you for your understanding.

Note: By purchasing, you AGREE that no returns/refunds will be accepted due to the declared condition.
