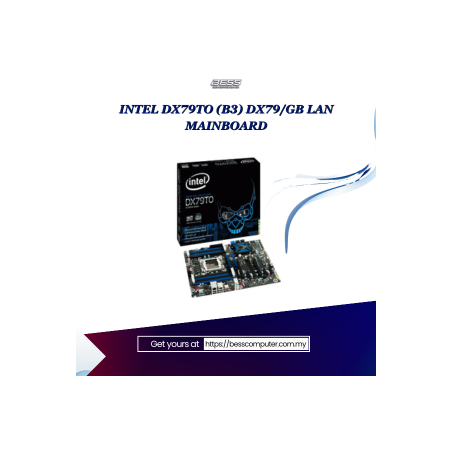

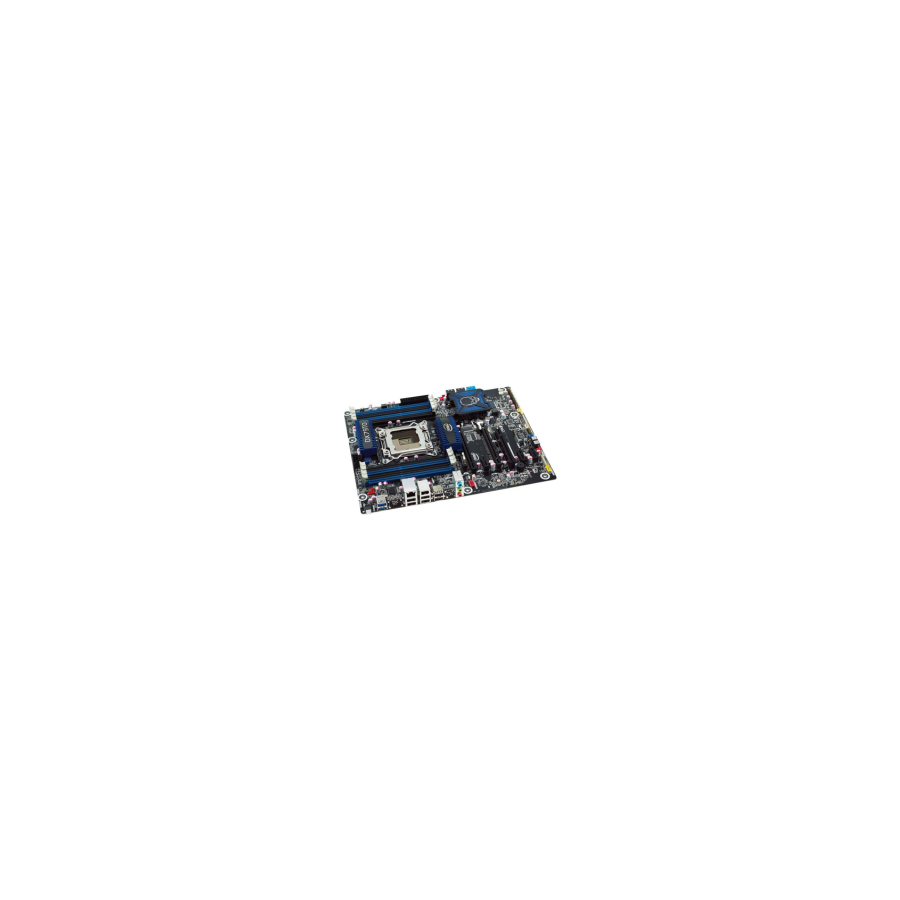

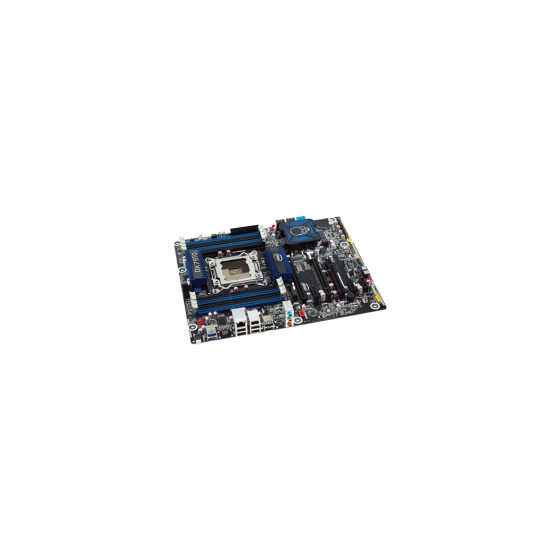

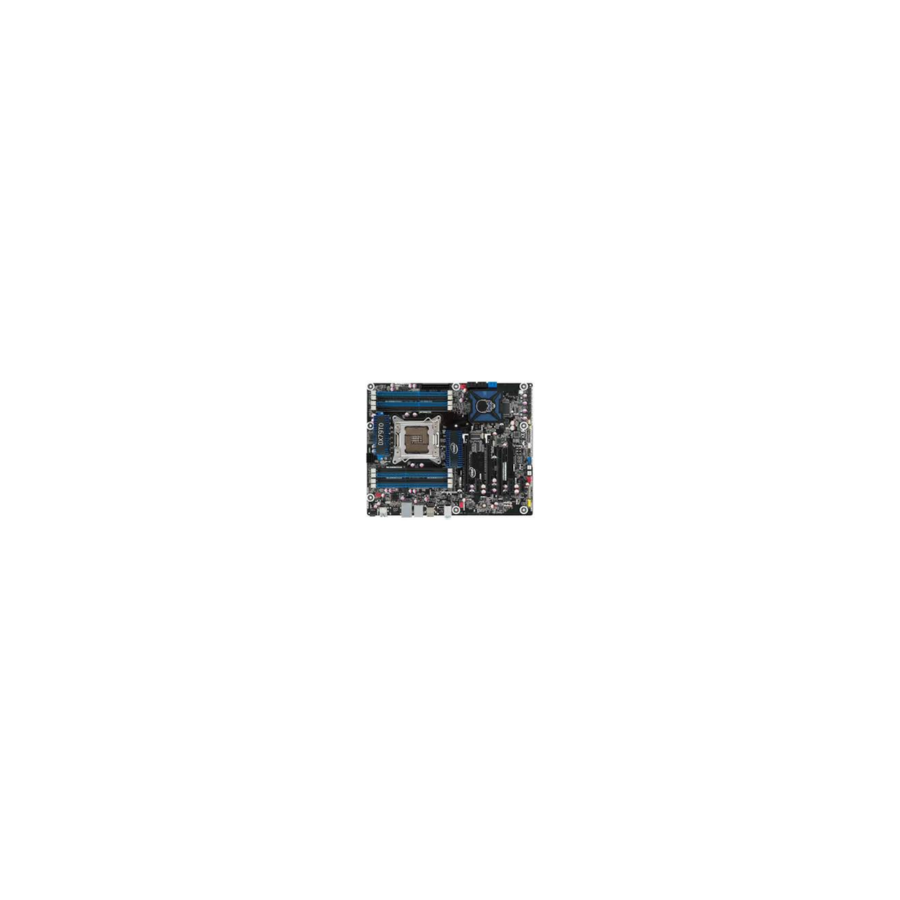

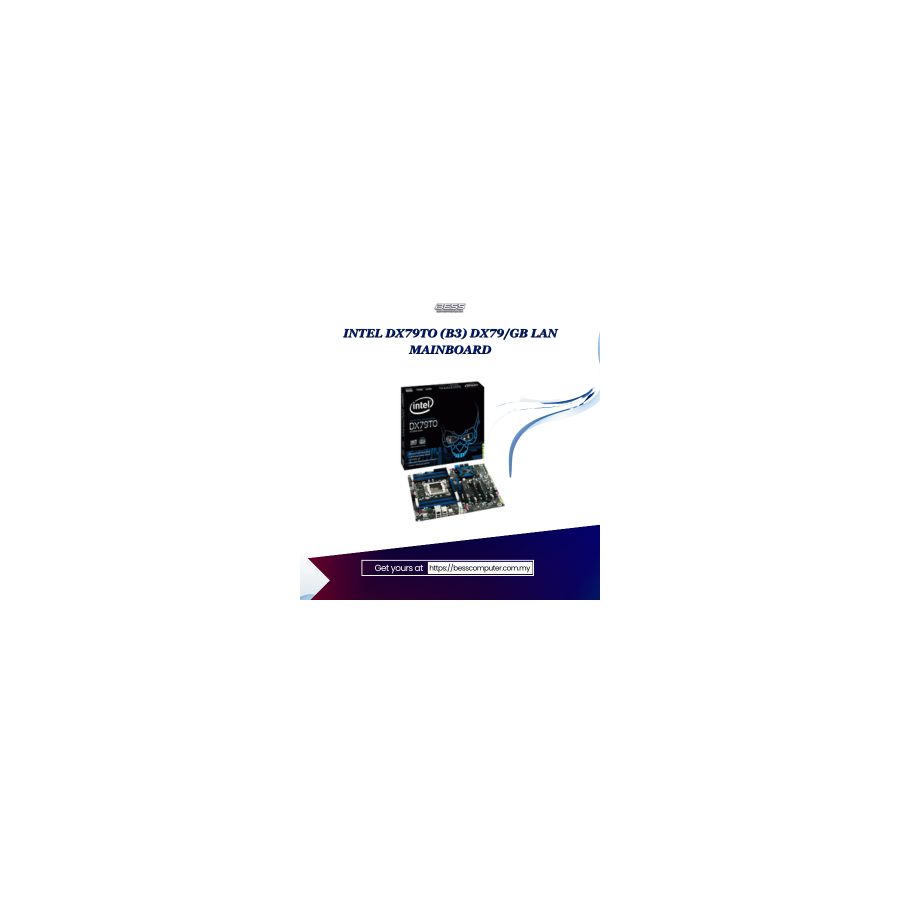

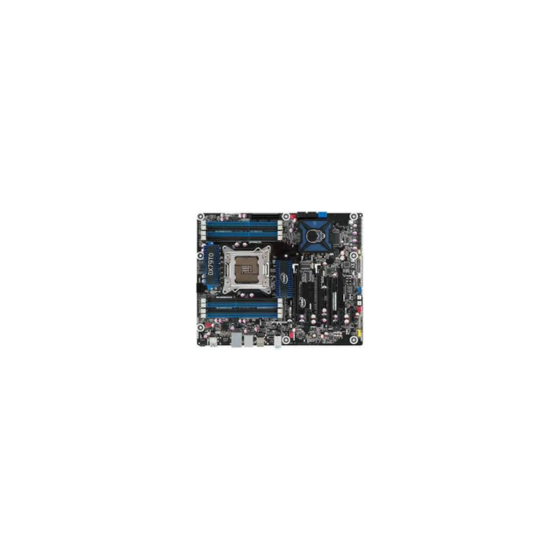

INTEL DX79TO (SOCKET LGA2011 & INTEL X79 EXPRESS CHIPSET)

Model: Intel® Desktop Board DX79TO (Extreme Series) CPU: Intel® Socket LGA2011 for Intel® Core™ i7 / Core™ i7 Extreme Edition / Xeon® Processors; Supports Intel® Turbo Boost Technology 2.0; Supports Intel® Hyper-Threading Technology. Chipset: Intel® X79 Express Chipset Memory: 8 x 240-pin DIMM slots, Max. 64GB, DDR3 SDRAM, Quad-Channel Memory Architecture (Supports Quad, Tri, Dual, and Single Channel modes); Supports Intel® Extreme Memory Profile (XMP) extended voltage profiles (1.35V low voltage / 1.5V standard JEDEC). Supported overclocked (O.C.) frequencies: 2400(O.C.) / 2133(O.C.) / 1866(O.C.) MHz, and native 1600 / 1333 / 1066 MHz. Graphic: None integrated on-board (Requires discrete graphics card / dedicated GPU). Expansion Slots:

• 2 x PCI Express 3.0 x16 slots (Fully active at x16/x16 dual mode, directly linked to CPU lanes).

• 3 x PCI Express 2.0 x1 slots (Managed by Chipset lanes).

• 1 x Legacy PCI Conventional bus connector slot. Multi-GPU Support: Supports NVIDIA® SLI™ Technology and AMD® CrossFireX™ Technology. Storage: Intel® X79 Express Chipset controller:

• 2 x SATA 6.0 Gb/s ports (Black / Blue).

• 4 x SATA 3.0 Gb/s ports (Gray).

• Supports RAID 0, 1, 5, 10 via Intel® Rapid Storage Technology.

• No M.2 or SATA Express slots (Legacy high-end HEDT storage layout). LAN: Intel® Gigabit (10/100/1000 Mb/s) LAN Controller, 1 x RJ45 port featuring an integrated Media Access Controller (MAC) and Physical Layer (PHY) interface. Audio: 8-Channel Intel® High Definition Audio CODEC (Realtek based layout):

• 6-channel analog configuration via the back panel.

• 2-channel independent multi-streaming audio via the front panel header.

• Back panel support for output via Optical audio connection.

• 1 x Internal header for S/PDIF output supporting HDMI expansion pass-through. USB Ports: Total of 16 USB ports handled by the Intel® X79 platform and supplementary host controllers:

• Rear Panel I/O: 2 x USB 3.0 ports (Blue, Renesas/NEC controller) + 6 x USB 2.0/1.1 ports.

• Internal/Mid-board Headers: 4 x USB 2.0 headers (supports 8 additional USB 2.0 ports).

Software Features: ASUS/Manufacturer Exclusive Software

• Intel® Extreme Tuning Utility (Intel® XTU) for performance manual tuning and auto-overclocking

• Intel® Express Installer

• Intel® Rapid Storage Technology Utility

• Driver & Software Support Integration Portal UEFI BIOS

• Intel® Platform Innovation Framework for EFI (Intel Visual BIOS Interface)

• Intel® Rapid BIOS Boot (Fast Boot configuration)

• Intel® Express BIOS Update Support (BIOS flashing via F7 utility function key)

• Intel® BIOS Vault Technology (Provides fault-tolerant and secure secondary recovery firmware) Manufacturer Special Features:

• Advanced Voltage Regulator Heat Sinks for enhanced, silent cooling during high-load processing.

• Onboard Tweaker Switches: Physical Power and Reset buttons right on the PCB for open-chassis testing.

• Initialization and Diagnostic POST LEDs: Visible status lights for real-time hardware boot tracking.

• Intel® Trusted Platform Module (Intel® TPM) built-in hardware security chip on-board.

• Poly Fuse over-current protection for back panel peripheral circuits.

• Dual IEEE 1394a Firewire ports (1 rear external, 1 internal mid-board header).

Back I/O Ports:

• 1 x Back-to-BIOS Button (Hardware switch to auto-boot straight into safe firmware configuration)

• 1 x RJ-45 Gigabit Ethernet port (with built-in Link/Activity LEDs)

• 2 x USB 3.0 ports (Blue)

• 6 x USB 2.0 ports (Black)

• 1 x IEEE 1394a Firewire port

• 1 x Optical S/PDIF out port

• 3 x Audio jacks (Line-In, Line-Out/Front Speakers, Microphone-In)

Internal I/O Ports:

• 1 x 24-pin ATX Main Power connector

• 1 x 8-pin ATX 12V CPU Core Power connector

• 2 x SATA 6.0 Gb/s connectors

• 4 x SATA 3.0 Gb/s connectors

• 4 x USB 2.0 headers (Supports up to 8 additional internal USB 2.0 ports)

• 1 x IEEE 1394a Firewire header

• 1 x 4-pin CPU Fan connector (With intelligent speed control)

• 1 x 4-pin Rear Chassis Fan connector

• 1 x 4-pin Front Chassis Fan connector

• 1 x 4-pin Auxiliary Fan connector

• 1 x Front Panel Audio header (AAFP)

• 1 x S/PDIF out header

• 1 x Chassis Intrusion header

• 1 x Front Panel System Cluster header (Power Switch, Reset Switch, HDD LED, Power LED)

• 1 x Consumer Infrared (CIR) Receiver Input header

• 1 x Consumer Infrared (CIR) Emitter Output header

• 1 x Single Configuration Jumper for BIOS Maintenance Mode

Accessories:

• 1 x Product Guide & Hardware Quick Start Guide

• 1 x Intel® Extreme Series I/O Shield backplate

• 4 x SATA data cables

• 1 x SLI bridge interconnect ribbon cable

• 1 x Driver & Utility Support DVD Disc

• 1 x Intel® Extreme Series layout sticker/badge BIOS: 64 Mb Flash EEPROM, Intel® Visual BIOS, Advanced Configuration and Power Interface V3.0b, ACPI, DMI 2.5, PnP. Manageability: WfM 2.0, DMI 2.5, WOL (Wake-on-LAN) by PME/WAKE#, PXE boot, Wake from Consumer IR/USB. Operating System: Microsoft® Windows® 7 (64-bit/32-bit), Windows® Vista (64-bit/32-bit), Windows® XP (32-bit layout). Form Factor: ATX Form Factor; 11.6 inches x 9.6 inches (29.46 cm x 24.38 cm)

✔ Some units – Packaging in good/new condition. ⚠ Some units – Packaging may show signs of aging (dust, minor scratches / dents, faded labels) or missing original boxes due to older stock. 🔧 Rest assured, all products are fully functional unless stated otherwise. We check quality before shipping! Thank you for your understanding.

Note: By purchasing, you AGREE that no returns/refunds will be accepted due to the declared condition.
