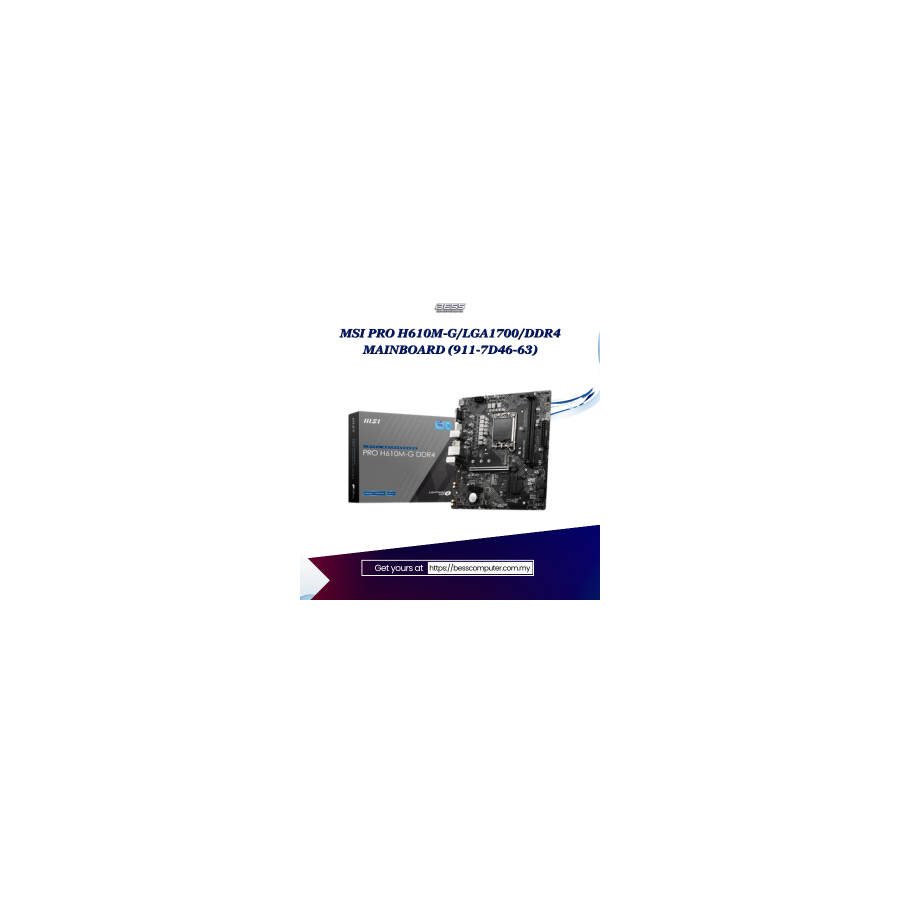

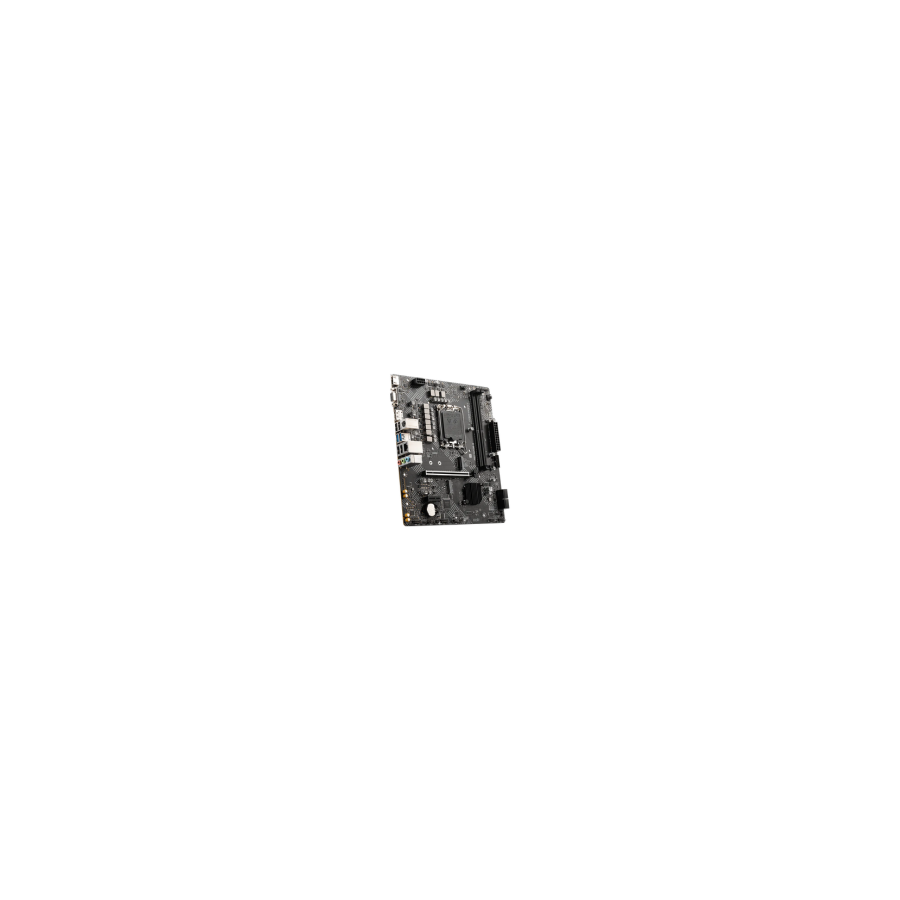

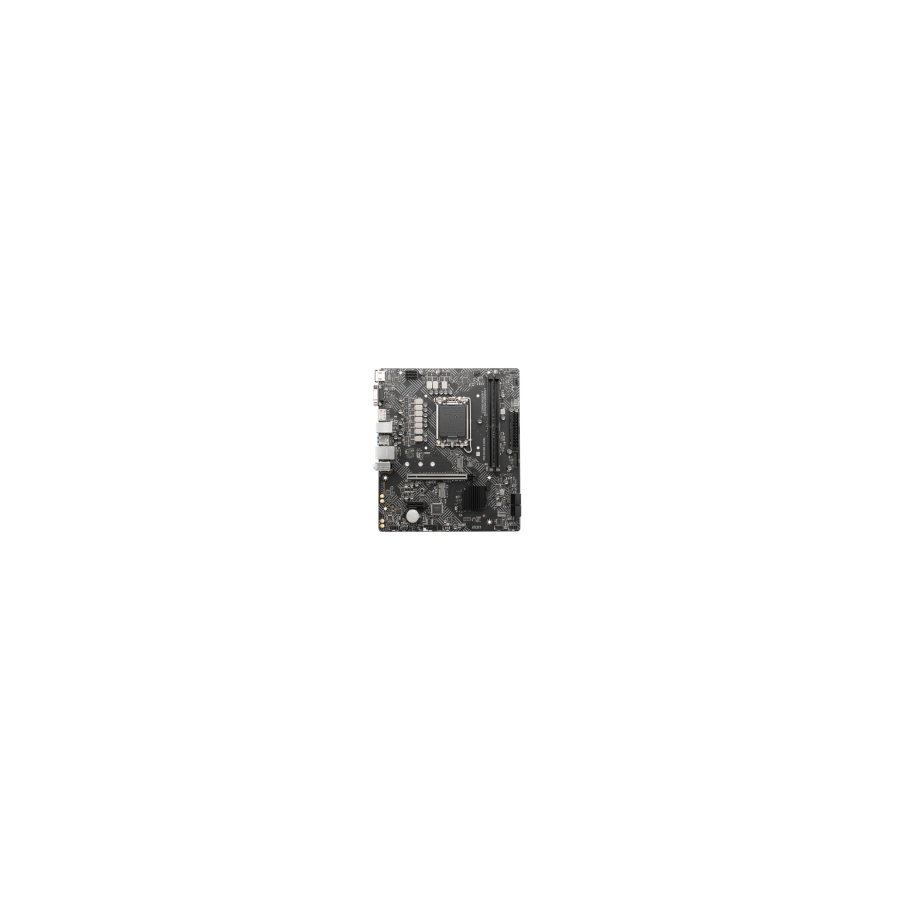

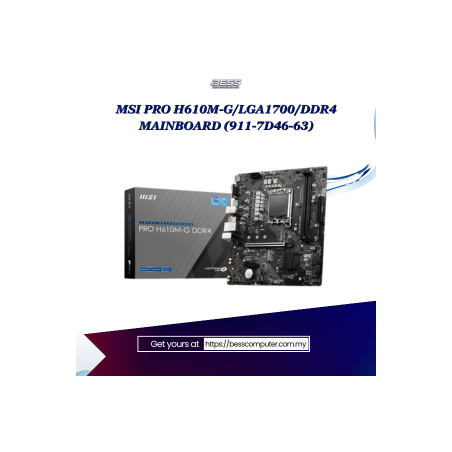

MSI PRO H610M-G DDR4 (SOCKET LGA1700 & INTEL H610 CHIPSET)

Model: MSI PRO H610M-G DDR4 (Part Number: 911-7D46-63)

CPU: Supports 12th, 13th, and 14th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors for Socket LGA1700.

Chipset: Intel® H610 Chipset

Memory: 2 x DDR4 DIMM slots, Max capacity up to 64GB; Dual-Channel Memory Architecture; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile (XMP). Supported frequencies: 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz (Native). Note: Maximum memory frequency depends on the installed CPU and memory module combination. Graphic: Integrated Graphics Processor support depends on the installed CPU with onboard Intel HD Graphics. Offers multi-VGA output options across 3 distinct ports with the following maximum resolutions:

• HDMI 2.1: Max resolution 4K 60Hz.

• DisplayPort 1.4: Max resolution 4K 60Hz.

• D-Sub (VGA): Max resolution 2048 x 1536 @ 50Hz / 1920 x 1200 @ 60Hz.

• Note: Supports up to 3 displays simultaneously. Expansion Slots: * 1 x PCI Express x16 slot (PCI_E1, directly managed by CPU lanes):

  • Supports up to PCIe 4.0 x16 operation.

• 1 x PCI Express x1 slot (PCI_E2, managed by Intel H610 Chipset lanes):

  • Supports PCIe 3.0 x1 operation.

    Multi-GPU Support: Not Supported.

Storage: Intel® H610 Chipset storage storage architecture:

• 1 x M.2 slot (Key M, M2_1 from Chipset):

  • Supports up to PCIe 3.0 x4 speed.

  • Supports type 2242/2260/2280 storage devices.

• 4 x SATA 6Gb/s ports (SATA1 to SATA4).

• Note: RAID function is not supported for SATA or M.2 NVMe storage drives on the H610 platform. LAN: 1 x Intel® I219-V 1Gbps Gigabit Ethernet Controller.

  Audio: Realtek® ALC897 Codec; 7.1-Channel High Definition Audio.

  USB Ports: Dynamic USB deployment handled by CPU and H610 Chipset:

• Rear Panel I/O: 2 x USB 3.2 Gen 1 5Gbps ports (Type-A) + 4 x USB 2.0 ports.

• Internal Headers: 1 x USB 3.2 Gen 1 5Gbps header (Supports 2 additional Type-A front panel ports) + 1 x USB 2.0 header (Supports 2 additional Type-A front panel ports).

Software Features

MSI Exclusive Software

• MSI Center: A centralized framework that unites multi-tier utilities including User Scenario profiling, Hardware Monitor, True Color, Live Update, and Mystic Light synchronization.

• MSI Voice Boost: Software application layer ensuring balanced game audio and communications filtering.

UEFI BIOS

• MSI Click BIOS 5 (Graphical User Interface environment).

• 1 x 125 Mbit Flash ROM configuration.

• Features EZ-Mode for simple system adjustment tables and Advanced-Mode for granular tuning.

Manufacturer Special Features

• Steel Armor PCIe Slot: Reinforced physical design using additional solder points to anchor heavy enthusiast graphics cards safely.

• Core Boost Technology: Premium digital layout layout paired with optimized power design paths to deliver precise current flow to the CPU.

• Memory Boost: Isolated memory circuitry completely cut off from edge interference to route clean data signals.

• EZ Debug LED: Onboard diagnostic light arrays mapping out errors across CPU, DRAM, VGA, and BOOT blocks for immediate troubleshooting.

• Frozr AI Cooling: Dynamic fan management parsing telemetry from thermal sensors to alter system curves automatically via internal algorithms.

Back I/O Ports

• 1 x PS/2 Keyboard/Mouse combo port

• 1 x D-Sub (VGA) port

• 1 x DisplayPort 1.4

• 1 x HDMI 2.1 port

• 2 x USB 3.2 Gen 1 5Gbps ports (Type-A)

• 4 x USB 2.0 ports

• 1 x RJ-45 Gigabit LAN port

• 3 x Audio jacks (Line-In, Line-Out, Microphone-In)

Internal I/O Ports

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector

• 1 x 4-pin CPU fan header

• 2 x 4-pin System fan headers

• 1 x 3-pin ARGB LED connector (Supports Addressable RGB strips)

• 1 x 4-pin RGB LED connector

• 1 x M.2 slot (Key M)

• 4 x SATA 6Gb/s connectors

• 1 x Front panel audio connector (AAFP)

• 2 x System panel connectors (JFP1 / JFP2)

• 1 x Chassis intrusion connector

• 1 x Serial port (COM) header

• 1 x Clear CMOS jumper

• 1 x TPM module connector (Supports security sub-modules)

• 1 x USB 3.2 Gen 1 5Gbps connector (Supports 2 additional ports)

• 1 x USB 2.0 connector (Supports 2 additional ports)

Additional Product Information

Accessories: * 1 x I/O Shield backplate

• 1 x M.2 Anchor/Screw kit for toolless drive mounting

• 2 x SATA 6Gb/s data cables

• 1 x Quick Installation Guide

BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, ACPI 6.4, SM BIOS 3.5.

Manageability: WOL by Intel® PME, PXE remote boot capabilities.

Operating System: Support for Windows® 11 (64-bit) / Windows® 10 (64-bit).

Form Factor: Micro-ATX Form Factor; 9.3 inches x 8.0 inches (23.6 cm x 20.2 cm); Secure 6-mounting-hole implementation layout footprint.

Comprehensive Architecture & Performance Deep-Dive

The Architectural Purpose of the Intel H610 Chipset Platform

The architectural layout of the MSI PRO H610M-G DDR4 relies on the efficient decoupling of processing and system layout logic engineered for Intel Hybrid-Architecture processors. Positioned as a streamlined entry point to the LGA1700 ecosystem, the platform concentrates its primary system bandwidth directly within the CPU package, bypassing unnecessary structural interconnects.

The central processor maintains a direct connection to the system's primary graphics card slot and system memory lines. This architecture frees the Intel H610 Hub to coordinate secondary background tasks, including peripheral I/O lines, legacy system headers, audio logic, and standard networking data. Communication between the main processor socket and the H610 hub travels across a dedicated DMI 4.0 interface, providing a smooth data stream across everyday hardware tasks.

Dual-Channel DDR4 Memory Routing Framework

The physical trace layout of the memory banks uses a direct, parallel memory configuration optimized for standard DDR4 unbuffered modules. By carefully matching trace lengths across the PCB layer layout, the signal propagation delay remains completely uniform between the memory pins and the internal CPU controller.

Populating both available slots activates two distinct 64-bit parallel memory pathways. This setup creates a full 128-bit memory bus configuration designed to feed modern multi-threaded software. Incorporating Intel XMP profiles allows users to easily map standard memory speed thresholds up to 3200MHz, keeping operations completely stable and protected against sudden cross-talk or signal degradation.

Focused PCI Express Lane Allocation & Shielding

The motherboard design provides dedicated 16-lane graphics bandwidth sourced directly from the integrated controller in the LGA1700 processor. When an advanced, modern graphics card is installed into the main PCI_E1 slot, the lane architecture maintains an unthrottled PCIe 4.0 x16 link to maximize frame buffering speeds.

To handle heavy, modern graphics hardware safely, MSI adds structural Steel Armor shielding around the primary slot. This mechanical reinforcement includes extra anchoring solder joints to support heavy cards, shielding the motherboard against mechanical stress or trace cracking during system handling.

Core Boost and Structural Efficiency

To ensure consistent reliability during long computing workloads, MSI builds the PRO H610M-G DDR4 using an optimized power delivery subsystem with specific component choices:

• Digital PWM Architecture: Delivers precise, ripple-free current distribution straight to the processor core lanes, avoiding voltage instability under sudden processing spikes.

• Solid Core Power Pin Layout: Solid-metal pins inside the power connectors increase the total surface contact area, protecting the connectors against heating or wear under long-term current flow.

• EZ Debug Layout Array: Four independent diagnostic diodes provide real-time hardware status verification, allowing immediate mapping of system boot sequence faults.
