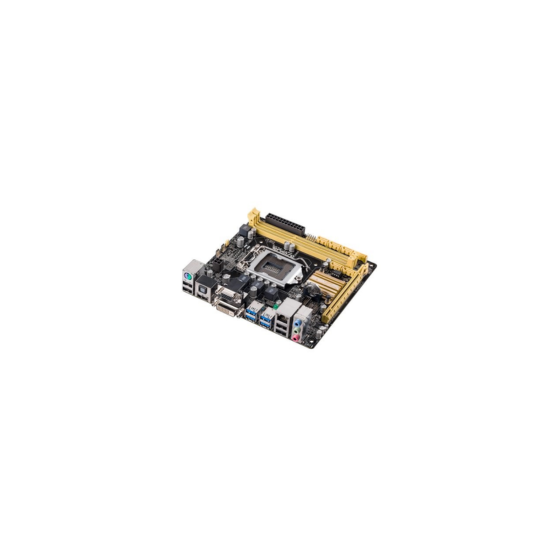

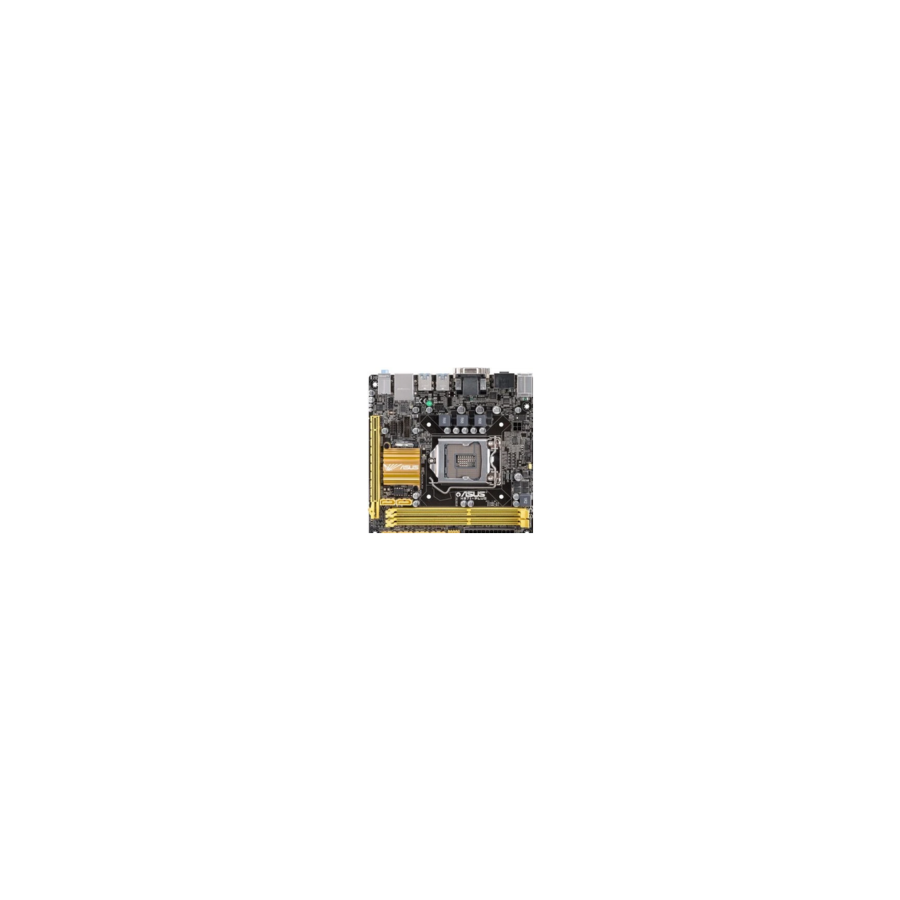

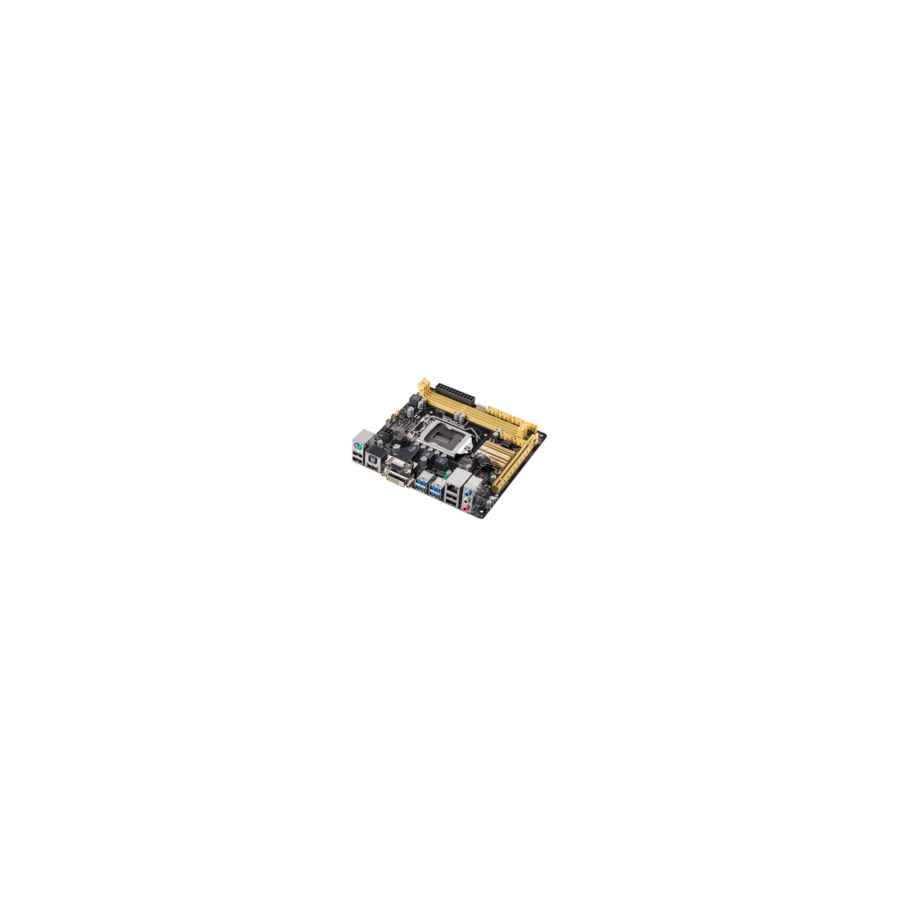

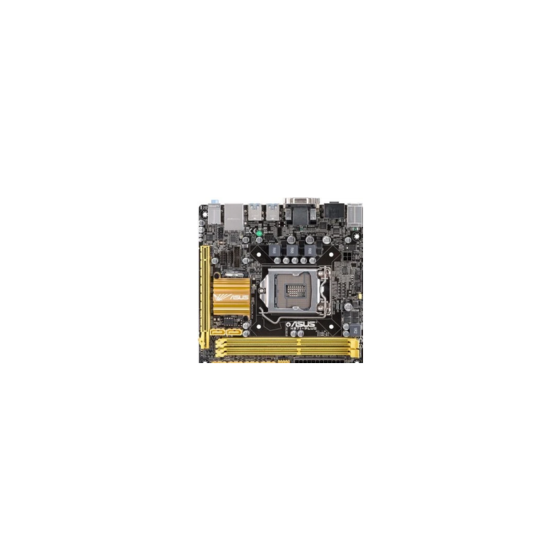

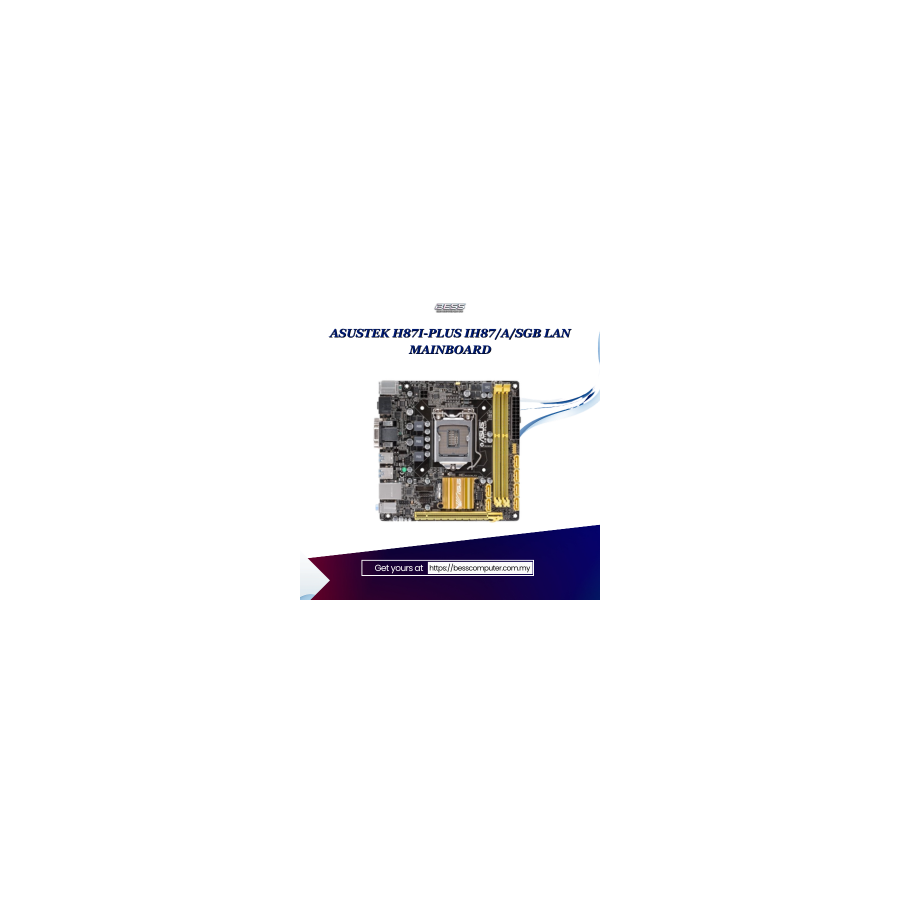

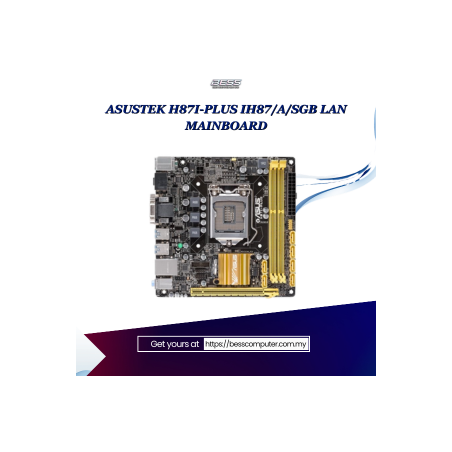

ASUSTEK H87I-PLUS MAINBOARD (LGA1150 SOCKET H87)

Model: H87I-PLUS CPU: Intel® Socket LGA1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors, Supports Intel® 22 nm CPU, Supports Intel® Turbo Boost Technology 2.0 Chipset: Intel® H87 Memory: 2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP)Graphic: Integrated Graphics Processor - Intel® HD Graphics support | Multi-VGA output support: HDMI/DVI-D/D-Sub ports | Supports HDMI with max. resolution 4096 x 2304 @ 24 Hz / 2560 x 1600 @ 60 Hz | Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz | Supports D-Sub with max. resolution 1920 x 1200 @ 60 Hz | Maximum shared memory of 1024 MB | Supports up to 3 displays simultaneously Expansion Slots: 1 x PCIe 3.0/2.0 x16 slot Storage: Intel® H87 chipset: 6 x SATA 6Gb/s ports (yellow), Support Raid 0, 1, 5, 10, Supports Intel® Dynamic Storage Accelerator, Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology LAN: Intel® I217-V, 1 x Gigabit LAN Controller Audio: Realtek® ALC887 8-Channel High Definition Audio CODEC | Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking USB Ports: Rear USB Port (Total 8): 4 x USB 3.2 Gen 1 (USB 3.0) ports, 4 x USB 2.0 ports | Front USB Port (Total 6): 1 x USB 3.2 Gen 1 (USB 3.0) header supports additional 2 USB 3.0 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports Software Features: ASUS Exclusive Software AI Suite 3

• Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert

• EZ Update

• USB 3.0 Boost

• AI Charger

• Anti-Surge Network iControl Remote GO! Cloud GO! ASUS CPU-Z Norton Anti-virus software (OEM version) UEFI BIOS ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 2

• ASUS UEFI BIOS EZ Mode Manufacturer Special Features:ASUS 5X PROTECTION

• ASUS DIGI+ VRM - Phase digital power design

• ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention

• ASUS ESD Guards - Enhanced ESD protection

• ASUS All 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability

• ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coatingASUS EZ DIY

• ASUS Q-Slot

• ASUS Q-DIMM Back I/O Ports: 1 x PS/2 keyboard (purple), 1 x DVI-D, 1 x D-Sub (VGA), 1 x HDMI, 1 x LAN (RJ45) port, 4 x USB 3.2 Gen 1 (blue), 4 x USB 2.0, 1 x Optical S/PDIF out, 3 x Audio jacks Internal I/O Ports: 1 x USB 3.2 Gen 1 (USB 3.0) connector supports additional 2 USB 3.0 ports, 2 x USB 2.0 connectors support additional 4 USB 2.0 ports, 6 x SATA 6Gb/s connectors, 1 x CPU Fan connector (1 x 4-pin), 1 x Chassis Fan connector (1 x 4-pin), 1 x S/PDIF out header, 1 x 24-pin EATX Power connector, 1 x 4-pin ATX 12V Power connector, 1 x Front panel audio connector (AAFP), 1 x System panel connector, 1 x Internal speaker connector, 1 x Clear CMOS jumper Accessories: User manual, I/O Shield, 2 x SATA 6Gb/s cables BIOS: 64 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a Manageability: WOL by PME, PXE Operating System: Windows® 7 / Windows® 8 / Windows® 8.1 / Windows® 10 Form Factor: 6.7 inch x 6.7 inch ( 17 cm x 17 cm ), Mini ITX Form Factor

✔ Some units – Packaging in good/new condition. ⚠ Some units – Packaging may show signs of aging (dust, minor scratches / dents, faded labels) or missing original boxes due to older stock. 🔧 Rest assured, all products are fully functional unless stated otherwise. We check quality before shipping! Thank you for your understanding.

Note: By purchasing, you AGREE that no returns/refunds will be accepted due to the declared condition.
