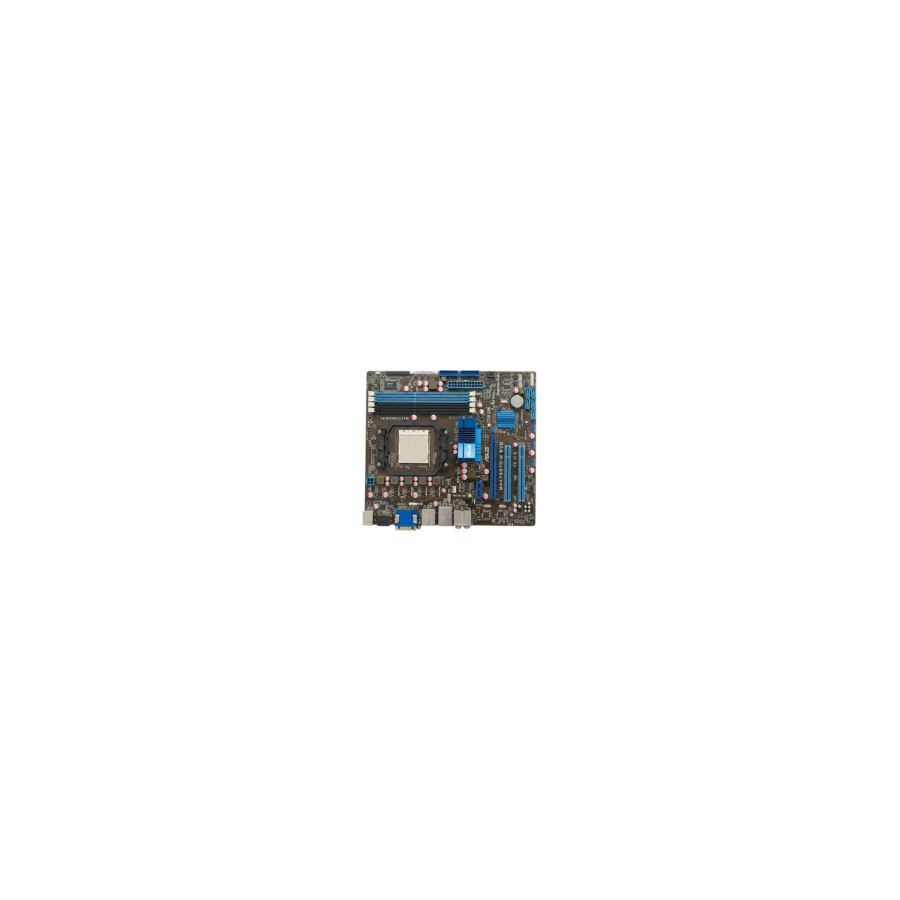

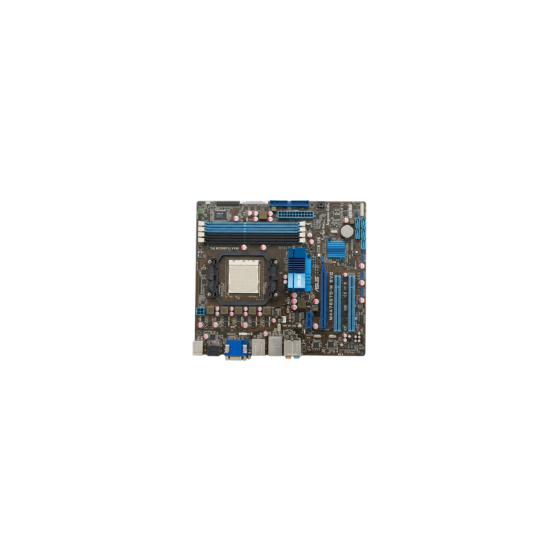

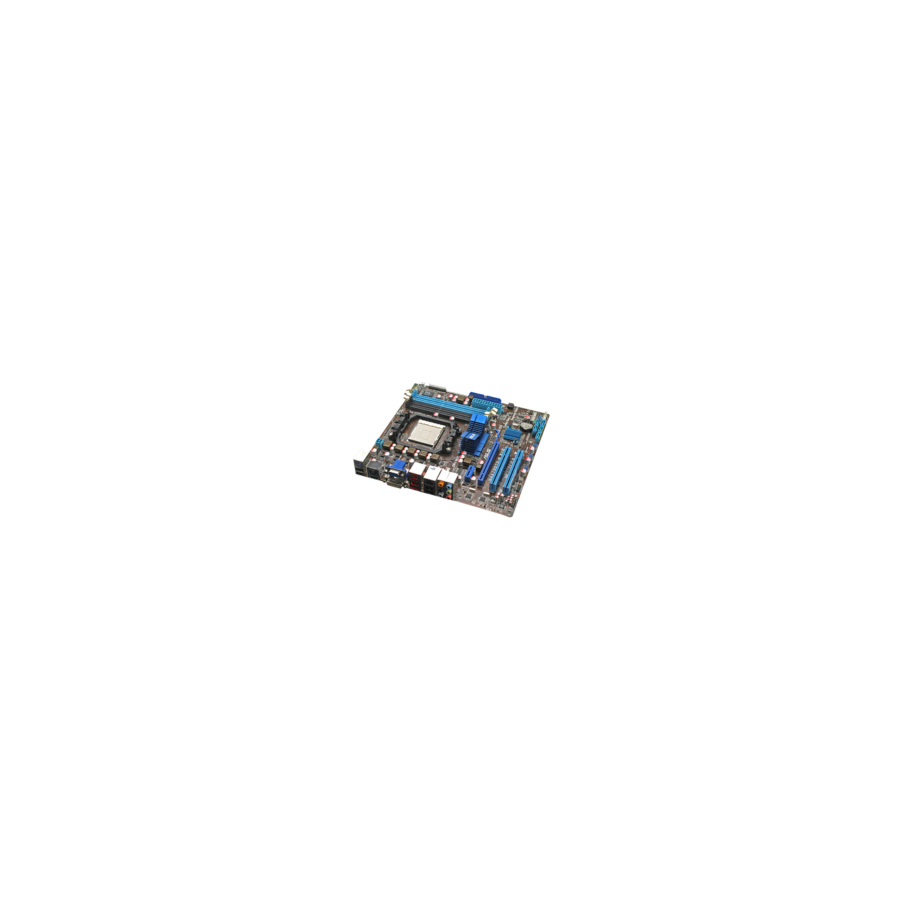

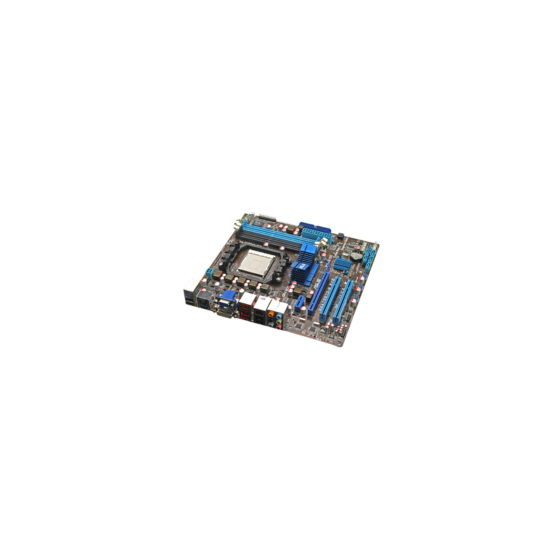

ASUSTEK M4A785TD-M EVO MAINBOARD (AM3 SOCKET 785G)

Model: M4A785TD-M EVO CPU: AMD Socket AM3 for Phenom™ II / Athlon™ II / Sempron™ 100 Series Processors, Supports AMD Cool 'n' Quiet™ Technology, Supports 45nm CPU Chipset: AMD 785G / SB710 Memory: 4 x DIMM, Max. 16GB, DDR3 1800(O.C.)/1600(O.C.)/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture Graphic: Integrated ATI Radeon™ HD 4200 GPU | SidePort Memory - Onboard 128MB DDR3 1333 memory | Multi-VGA output support: HDMI/DVI/D-Sub ports | Supports HDMI with max. resolution 1920 x 1200 (1080p) | Supports Dual-link DVI with max. resolution 2560 x 1600 @ 60Hz | Supports D-Sub with max. resolution 2560 x 1440 @ 75Hz | Hybrid CrossFireX™ Support | Maximum shared memory of 512MB | Supports Microsoft® DirectX 10.1, OpenGL 2.0, Shader Model 4.1 Expansion Slots: 1 x PCIe 2.0 x16 slot, 1 x PCIe x1 slot, 2 x PCI slots Storage: AMD SB710 Chipset: 1 x UltraDMA 133/100/66 for up to 2 PATA devices, 5 x SATA 3Gb/s ports (blue), 1 x eSATA 3Gb/s port (black), Support Raid 0, 1, 10, JBOD LAN: Realtek® RTL8112L PCIe Gigabit LAN controller featuring AI NET 2 Audio: VIA® VT1708S 8-Channel High Definition Audio CODEC | Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking | Optical S/PDIF Out port at rear I/O USB Ports: Total 12 USB 2.0 ports | Rear USB Port (Total 6): 6 x USB 2.0/1.1 ports | Front USB Port (Total 6): 3 x USB 2.0 connectors support additional 6 USB 2.0 ports Software Features: ASUS Exclusive Software ASUS AI Suite ASUS TurboV ASUS EPU ASUS Fan Xpert ASUS GPU NOS ASUS AI NET 2 ASUS MyLogo 2 UEFI BIOS / Legal BIOS 8 MB Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 2

• ASUS Q-Fan Manufacturer Special Features: ASUS Power Solutions

• 8+2 Phase Power Design

• 100% All High-quality Conductive Polymer Capacitors! ASUS Quiet Thermal Solution

• Stylish Fanless Design Heat Sink solution ASUS EZ DIY

• ASUS Express Gate

• ASUS Q-Slot Back I/O Ports: 1 x PS/2 Keyboard/Mouse Combo port, 1 x DVI, 1 x D-Sub, 1 x HDMI, 1 x External SATA (eSATA), 1 x S/PDIF Out (Optical), 1 x IEEE 1394a (FireWire), 1 x LAN (RJ45) port, 6 x USB 2.0/1.1, 8-Channel Audio I/O jacks Internal I/O Ports: 3 x USB 2.0 connectors support additional 6 USB 2.0 ports, 1 x IDE connector, 5 x SATA 3Gb/s connectors, 1 x IEEE 1394a connector, 1 x CPU Fan connector, 1 x Chassis Fan connector, 1 x Power Fan connector, 1 x S/PDIF Out connector, 1 x Front panel audio connector, 1 x COM connector, 1 x LPT connector, 1 x 24-pin ATX Power connector, 1 x 4-pin ATX 12V Power connector Accessories: User manual, I/O Shield, 1 x UltraDMA 133/100/66 cable, SATA 3Gb/s cables, Support DVD BIOS: 8 MB Flash ROM, AMI BIOS Manageability: WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE Operating System: Windows® XP / Windows® Vista / Windows® 7 / Windows® 10 Form Factor: 24.4 cm x 24.4 cm (9.6 inch x 9.6 inch), mATX Form Factor

✔ Some units – Packaging in good/new condition. ⚠ Some units – Packaging may show signs of aging (dust, minor scratches / dents, faded labels) or missing original boxes due to older stock. 🔧 Rest assured, all products are fully functional unless stated otherwise. We check quality before shipping! Thank you for your understanding.

Note: By purchasing, you AGREE that no returns/refunds will be accepted due to the declared condition.
