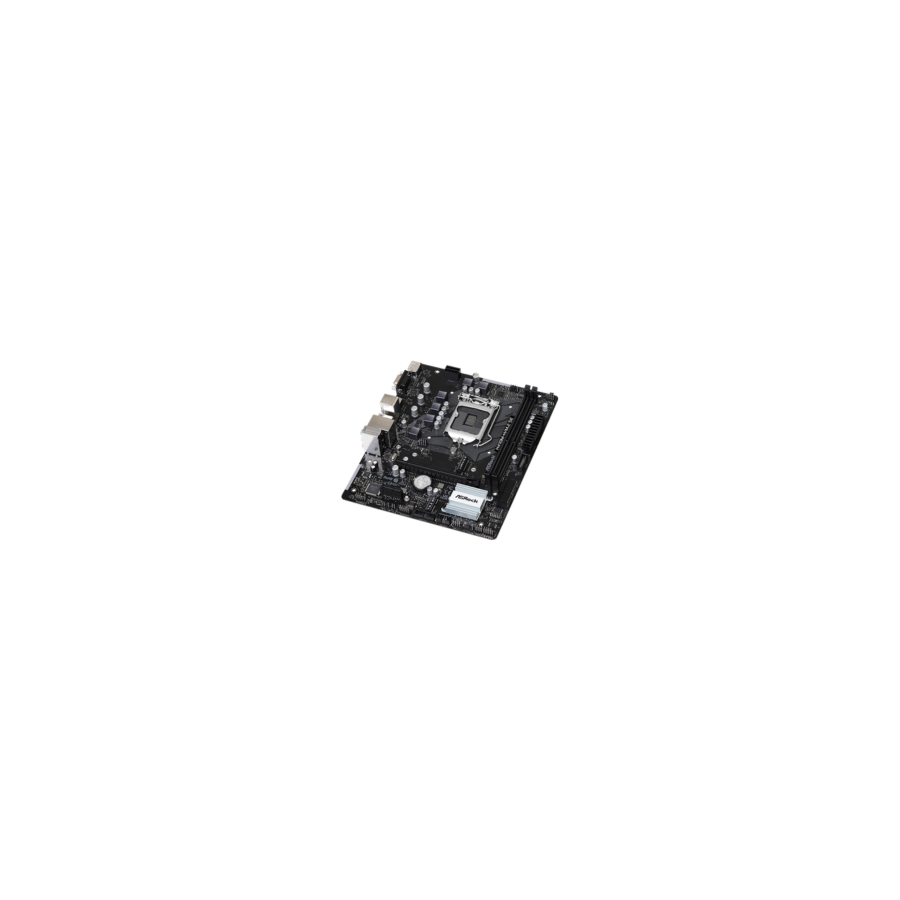

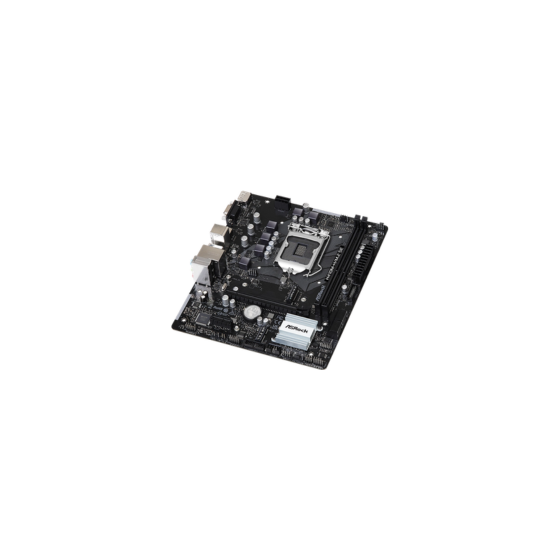

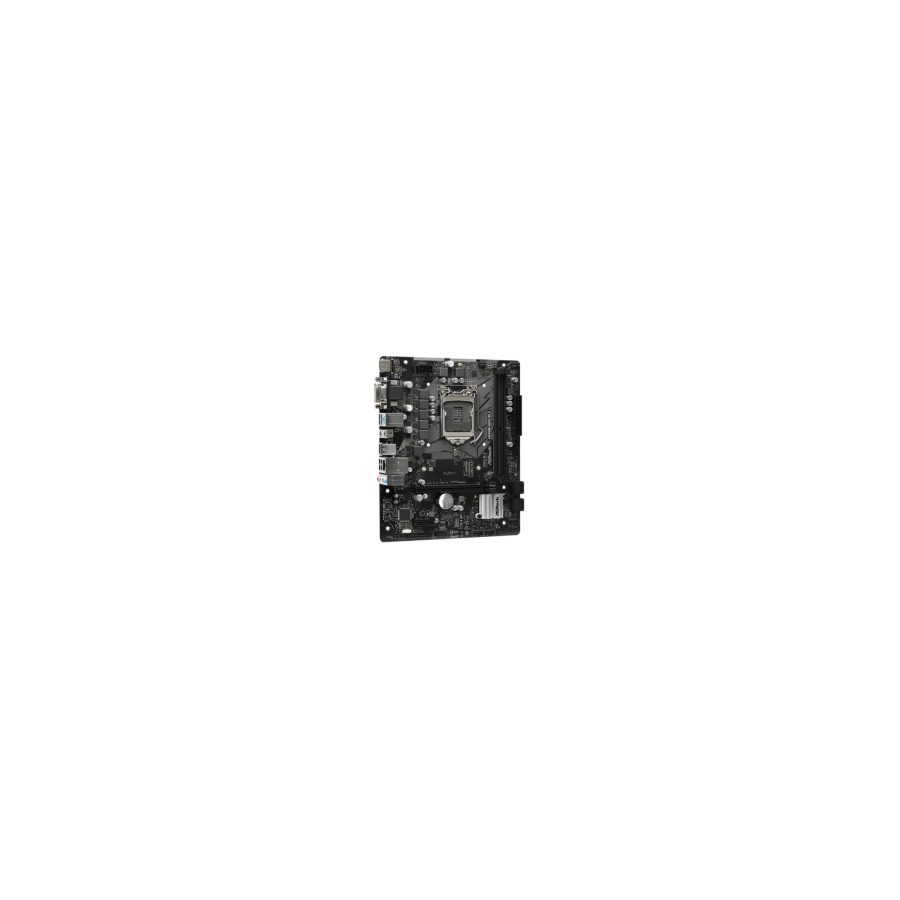

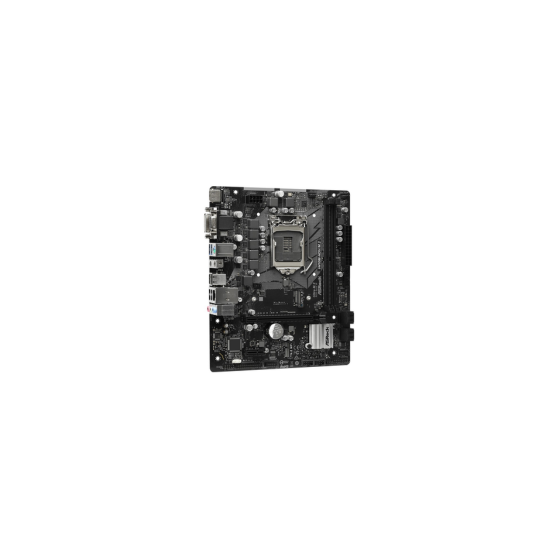

ASROCK H410M-H/M.2 SE MAINBOARD (LGA1200 SOCKET H370/H410)

Model: H410M-H/M.2 SE CPU: Supports 10th Gen Intel® Core™ Processors (Socket 1200), Supports Intel® Turbo Boost Max 3.0 Technology Chipset: Intel® H370 Memory: 2 x DDR4 DIMM Slots, Max. 64GB, DDR4 2933/2800/2666/2400/2133 non-ECC, un-buffered memory*, Supports ECC UDIMM memory modules (operate in non-ECC mode), Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP) 2.0, 15μ Gold Contact in DIMM Slots Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666. Graphic: Supports Intel® UHD Graphics Built-in Visuals | Three graphics output options: D-Sub, DisplayPort 1.2, and HDMI | Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz | Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz | Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz | Supports HDCP 2.3 with DisplayPort 1.2 and HDMI 1.4 Ports Graphics specifications may vary between CPU types, supports up to 2 displays simultaneously. Expansion Slots: 1 x PCI Express 3.0 x16 Slot (supports NVMe SSD as boot disks) | 1 x PCI Express 3.0 x1 Slot | 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Storage: 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology), NCQ, AHCI and Hot Plug | 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) *Supports NVMe SSD as boot disks. If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. LAN: PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111H, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Supports Surge Protection USB Ports: Rear USB Port (Total 6): 4 x USB 3.2 Gen1 Ports (Supports ESD Protection), 2 x USB 2.0 Ports (Supports ESD Protection) | Front USB Port (Total 7): 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports), 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) Software Features: ASRock Exclusive Software

• ASRock Motherboard Utility (A-Tuning)

• ASRock XFast LAN

• ASRock Auto Driver Installer

• ASRock Live Update & APP Shop UEFI BIOS

• ASRock EZ Mode

• 128Mb AMI UEFI Legal BIOS with multilingual GUI support

• ACPI 6.0 Compliant wake up events

• SMBIOS 2.7 Support Manufacturer Special Features: ASRock Super Alloy

• Premium 50A Power Choke

• Sapphire Black PCB

• High Density Glass Fabric PCB ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) Solid Capacitor design 5 Power Phase design Digi Power design Back I/O Ports: 2 x Antenna Mounting Points, 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port, 1 x DisplayPort 1.2, 1 x HDMI Port, 4 x USB 3.2 Gen1 Ports, 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port with LED, HD Audio Jacks: Line in / Front Speaker / Microphone Internal I/O Ports: 1 x SPI TPM 2.0 IC Header, 1 x COM Port Header, 1 x Chassis Intrusion and Speaker Header, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers (Support 3 USB 2.0 ports), 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) Accessories: User manual, I/O Shield, 2 x SATA 6Gb/s cables, 1 x Screw for M.2 Socket BIOS: 128 Mb Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Operating System: Microsoft® Windows® 10 64-bit / 11 64-bit Form Factor: 8.9 inch x 7.4 inch ( 22.6 cm x 18.8 cm ), Micro ATX Form Factor

✔ Some units – Packaging in good/new condition. ⚠ Some units – Packaging may show signs of aging (dust, minor scratches / dents, faded labels) or missing original boxes due to older stock. 🔧 Rest assured, all products are fully functional unless stated otherwise. We check quality before shipping! Thank you for your understanding.

Note: By purchasing, you AGREE that no returns/refunds will be accepted due to the declared condition.
