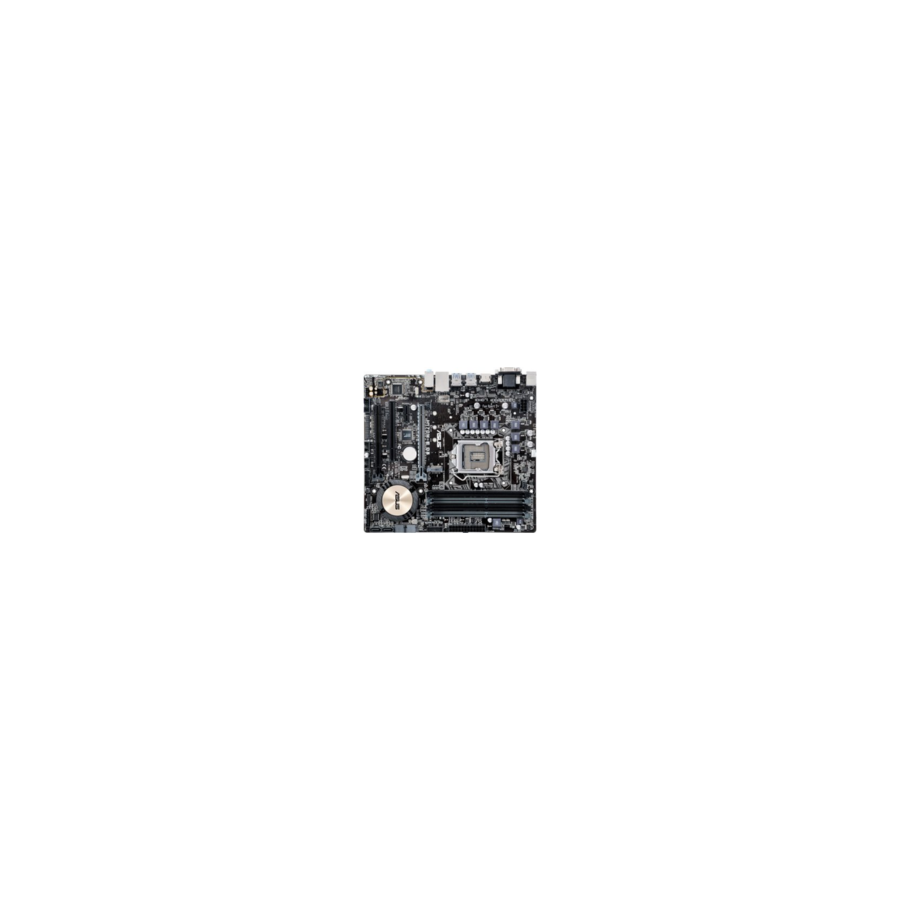

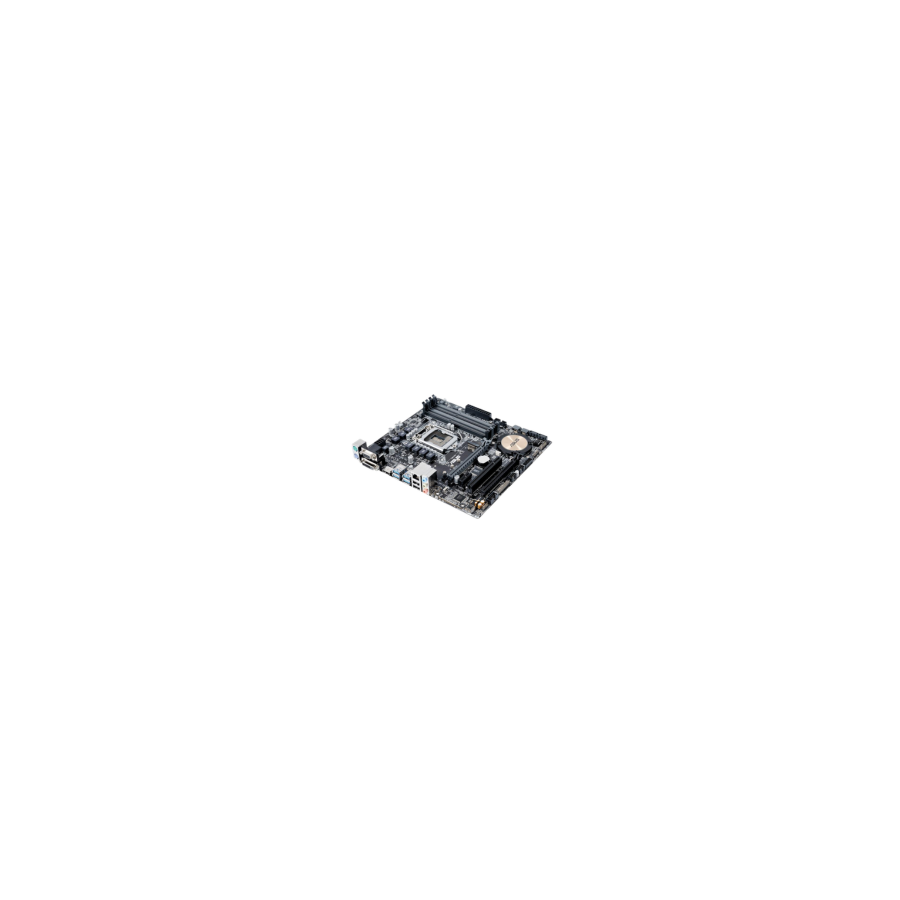

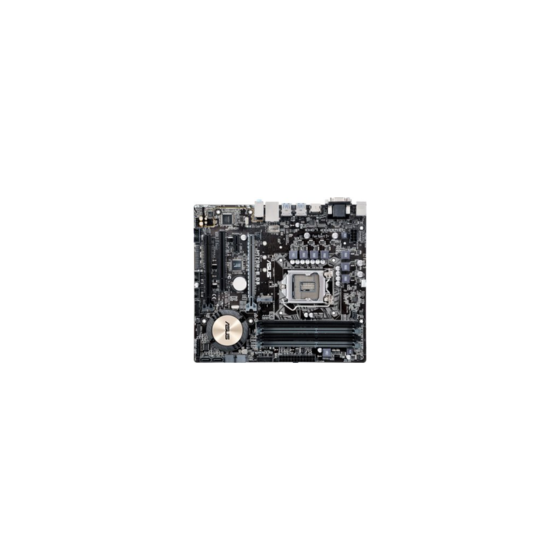

ASUSTEK H170M-E D3 MAINBOARD (LGA1151 SOCKET H170)

Model: H170M-E D3CPU: Intel® Socket LGA1151 for 6th/7th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors * Supports Intel® 14 nm CPU, Supports Intel® Turbo Boost Technology 2.0Chipset: Intel® H170Memory: 4 x DIMM, Max. 64GB, DDR3 1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP)Graphic: Integrated Graphics Processor - Intel® HD Graphics support | Multi-VGA output support: HDMI/DVI-D/RGB (D-Sub) ports | Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz | Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz | Supports RGB (D-Sub) with max. resolution 1920 x 1200 @ 60 Hz | Maximum shared memory of 1024 MB | Supports up to 3 displays simultaneously Expansion Slots: 1 x PCIe 3.0/2.0 x16 slot (gray, x16 mode) | 1 x PCIe 3.0/2.0 x16 slot (black, max at x4 mode, compatible with PCIe x1 and x4 devices) | 1 x PCIe 3.0/2.0 x1 slot | 1 x PCI slot | Supports AMD 2-Way CrossFireX™ Technology Storage: Intel® H170 chipset: 1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode), 4 x SATA 6Gb/s port(s) (gray), Support Raid 0, 1, 5, 10, Supports Intel® Smart Response Technology LAN: Realtek® RTL8111H, 1 x Gigabit LAN Controller Audio: Realtek® ALC887 8-Channel High Definition Audio CODEC | Supports: Jack-detection, Front Panel Jack-retasking | Audio Feature: Audio Shielding, Dedicated audio PCB layers, Premium Japanese-made audio capacitorsUSB Ports: Rear USB Port (Total 6): 4 x USB 3.2 Gen 1 (USB 3.0) ports (blue), 2 x USB 2.0 ports (black) | Front USB Port (Total 8): 2 x USB 3.2 Gen 1 (USB 3.0) connectors support additional 4 USB 3.0 ports, 2 x USB 2.0 connectors support additional 4 USB 2.0 ports Software Features: ASUS Exclusive Software AI Suite 3

• EPU

• AI Charger

• Anti-Surge

• Low EMI Solution

• USB 3.0 Boost

• Mobo Connect

• PC Cleaner ASUS Quiet Thermal Solution

• Stylish Fanless Design Heat-sink solution

• ASUS Fan Xpert 2+ ASUS EZ DIY

• Push Notice Media StreamerUEFI BIOS ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode Manufacturer Special Features: ASUS 5X PROTECTION II

• ASUS DIGI+ VRM - 4+2+1 Phase digital power design

• ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention

• ASUS ESD Guards - Electrostatic discharge protection

• ASUS LANGuard - Advanced LAN surge protection

• ASUS Overvoltage Protection - World-class circuit-protecting power design

• ASUS Stainless-Steel Back I/O - 3x more durable corrosion-resistant coating ASUS Q-Design

• ASUS Q-DIMM

• ASUS Q-Slot AURA Sync / Lighting Control

• Standard RGB headersBack I/O Ports: 1 x PS/2 keyboard port (purple), 1 x PS/2 mouse port (green), 1 x HDMI, 1 x DVI-D, 1 x D-Sub (VGA), 1 x LAN (RJ45) port, 4 x USB 3.2 Gen 1 (blue), 2 x USB 2.0, 3 x Audio jacks Internal I/O Ports: 2 x USB 3.2 Gen 1 (USB 3.0) connectors support additional 4 USB 3.0 ports, 2 x USB 2.0 connectors support additional 4 USB 2.0 ports, 1 x M.2 Socket 3 with M Key (type 2242/2260/2280/22110), 4 x SATA 6Gb/s connectors, 1 x CPU Fan connector (1 x 4-pin), 2 x Chassis Fan connectors (2 x 4-pin), 1 x S/PDIF out header, 1 x 24-pin EATX Power connector, 1 x 8-pin ATX 12V Power connector, 1 x Front panel audio connector (AAFP), 1 x System panel connector, 1 x Clear CMOS jumper, 1 x 14-1 pin TPM connector, 1 x LPT header, 1 x COM port header Accessories: User manual, I/O Shield, 2 x SATA 6Gb/s cables, 1 x M.2 Screw Package, 1 x Supporting DVDBIOS: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0Manageability: WfM 2.0, DMI 3.0, WOL by PME, PXEOperating System: Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit/64-bitForm Factor: 9.6 inch x 8.8 inch (24.4 cm x 22.4 cm), uATX / microATX Form Factor

✔ Some units – Packaging in good/new condition. ⚠ Some units – Packaging may show signs of aging (dust, minor scratches / dents, faded labels) or missing original boxes due to older stock. 🔧 Rest assured, all products are fully functional unless stated otherwise. We check quality before shipping! Thank you for your understanding.
