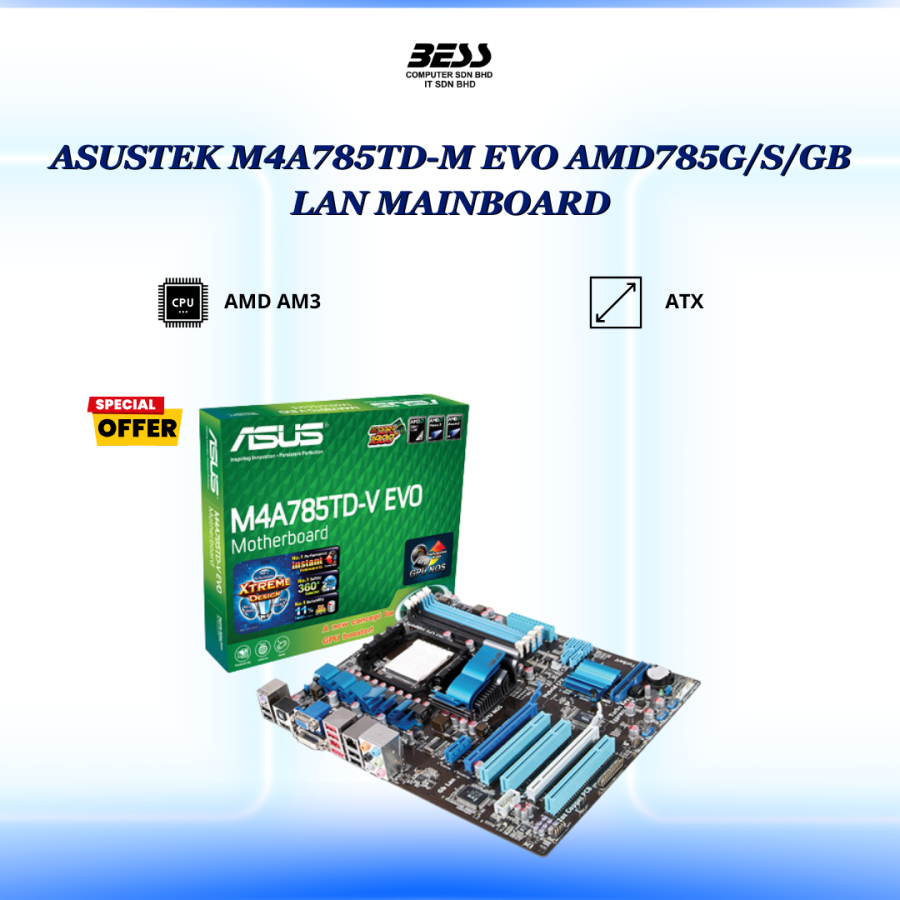

ASUSTEK M4A785TD-M EVO AMD785G/S/GB LAN MAINBOARD

Brand: ASUS

Model: M4A785TD-M EVO

CPU Socket Type: AM3

CPU Type: Athlon II / Phenom II / Sempron

FSB:2600 MHz

Chipset: AMD 785G

South Bridge: AMD SB710

Number of Memory Slots: 4x240pin

Memory Standard: DDR3 1800(O.C.)/1600(O.C.)/1333/1066

Maximum Memory Supported: 16GB

Channel Supported: Dual Channel

Expansion Slots:

PCI Express 2.0 x16 - 1 x PCI Express 2.0 x16

PCI Express x1 - 1 x PCI Express x1

PCI Slots - 2 x PCI Slots

Storage Devices:

PATA - 1 x ATA133 2 Dev. Max

SATA RAID - 0/1/10/JBOD

Onboard Video Chipset: Integrated ATI Radeon HD 4200 GPU, SidePort Memory - onboard 128MB DDR3 1333 memory

Onboard Audio:

Audio Chipset - VIA VT1708S

Audio Channels - 8 Channels

Onboard LAN:

LAN Chipset - Realtek 8112L

Max LAN Speed - 1Gbps

Rear Panel Ports:

Back I/O Ports 1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 / 6 x Audio Jacks / 6 x USB 2.0/1.1

PS/2 1 x PS/2 Keyboard/Mouse Combo port

Video Ports: D-Sub + DVI

HDMI: 1 x HDMI

USB 1.1/2.0: 6 x USB 2.0

IEEE 1394: 1 x IEEE 1394a

eSATA: 1 x eSATA 3Gb/s

S/PDIF Out:  1 x Optical

Audio Ports: 6 Ports

Internal I/O Connectors:

Onboard USB: 6 x USB 2.0

Onboard 1394: 1 x 1394a

===Physical Spec===

Form Factor: Micro ATX

Dimensions (W x L): 9.6" x 9.6"

Power Pin: 24 Pin

===Features===

-140w CPU support

-128MB SidePort Memory

-GPU NOS

-ASUS EPU

-Turbo Key
