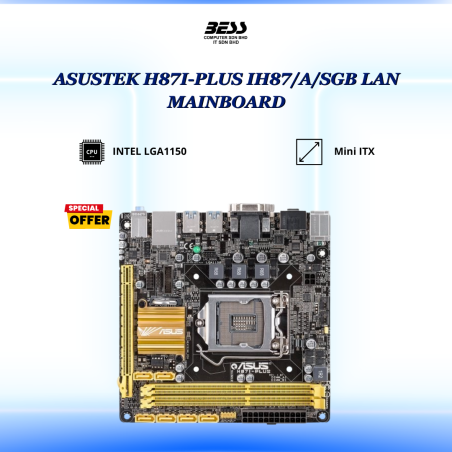

ASUSTEK H87I-PLUS IH87/A/SGB LAN MAINBOARD

CPU: Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Supports Intel® 22 nm CPU

Supports Intel® Turbo Boost Technology 2.0

* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

Chipset: Intel® H87

Memory: 2 x U-DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Graphic: Integrated Graphics Processor

- Supports HDMI with max. resolution 4096 x 2304 @ 24 Hz

- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz

- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

Maximum shared memory of 1024 MB

Expansion Slots: 1 x PCIe 3.0/2.0 x16

Storage

Intel® H87 chipset :6 x SATA 6Gb/s port(s), yellow

Support Raid 0, 1, 5, 10

LAN: Intel® I217, 1 x Gigabit LAN Controller(s)

Audio: Realtek® ALC887 8-Channel High Definition Audio CODEC *1

USB Ports

Intel® H87 chipset: 6 x USB 3.1 Gen 1 port(s) (4 at back panel, , 2 at mid-board)

Intel® H87 chipset: 8 x USB 2.0/1.1 port(s) (4 at back panel, , 4 at mid-board)

Special Features

ASUS 5X PROTECTION :

- ASUS DIGI+ VRM - Phase digital power design

- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention

- ASUS ESD Guards - Enhanced ESD protection

- ASUS All 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability

- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating

ASUS TurboV EVO :

- GPU Boost

ASUS EPU :

- EPU

ASUS Exclusive Features :

- AI Suite 3

- Ai Charger

- Anti-Surge

- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface

- Network iControl

- USB 3.0 Boost

ASUS Quiet Thermal Solution :

- ASUS Fan Xpert

ASUS EZ DIY :

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 2

TPM IC Onboard

Back I/O Ports:

1 x PS/2 keyboard (purple)

1 x DVI-D

1 x D-Sub

1 x HDMI

1 x LAN (RJ45) port(s)

4 x USB 3.0

4 x USB 2.0

1 x Optical S/PDIF out

3 x Audio jack(s)

Internal I/O Ports:

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

6 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

1 x Chassis Fan connector(s) (1 x 4 -pin)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x Front panel connector(s)

1 x Internal speaker connector(s)

1 x System panel(s)

1 x Clear CMOS jumper(s)

Accessories:

User's manual

I/O Shield

2 x SATA 6Gb/s cable(s)

BIOS: 64 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a

Manageability: WOL by PME, PXE

Support Disc:

Drivers

ASUS Utilities

ASUS Update

Anti-virus software (OEM version)

Form Factor: Mini ITX Form Factor / 6.7 inch x 6.7 inch ( 17 cm x 17 cm )

Note: Use a chassis with HD audio module in the front panel to support an 8-channel audio output

✔ Some units – Packaging in good/new condition.

⚠ Some units – Packaging may show signs of aging (dust, minor scratches / dents, faded labels) or missing original boxes due to older stock.

🔧 Rest assured, all products are fully functional unless stated otherwise. We check quality before shipping! Thank you for your understanding.

Note: By purchasing, you AGREE that no returns/refunds will be accepted due to the declared condition.
