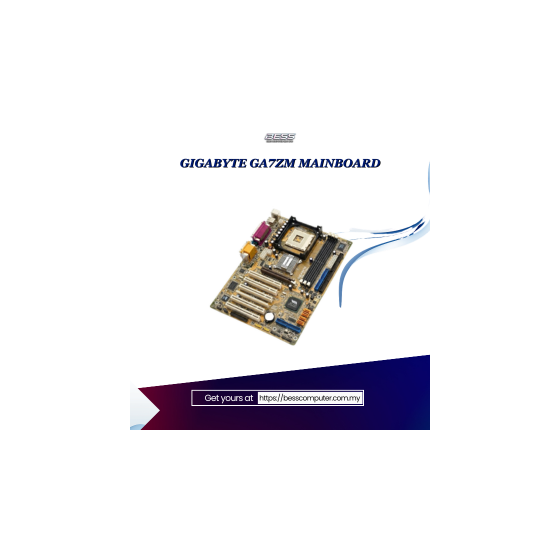

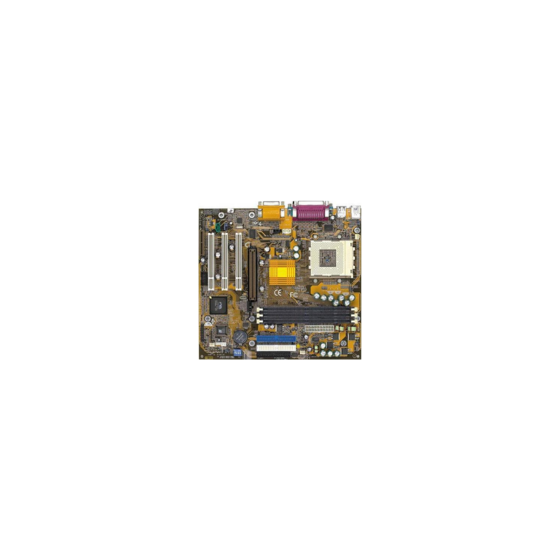

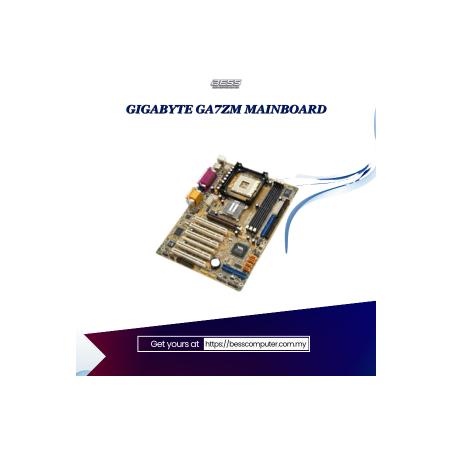

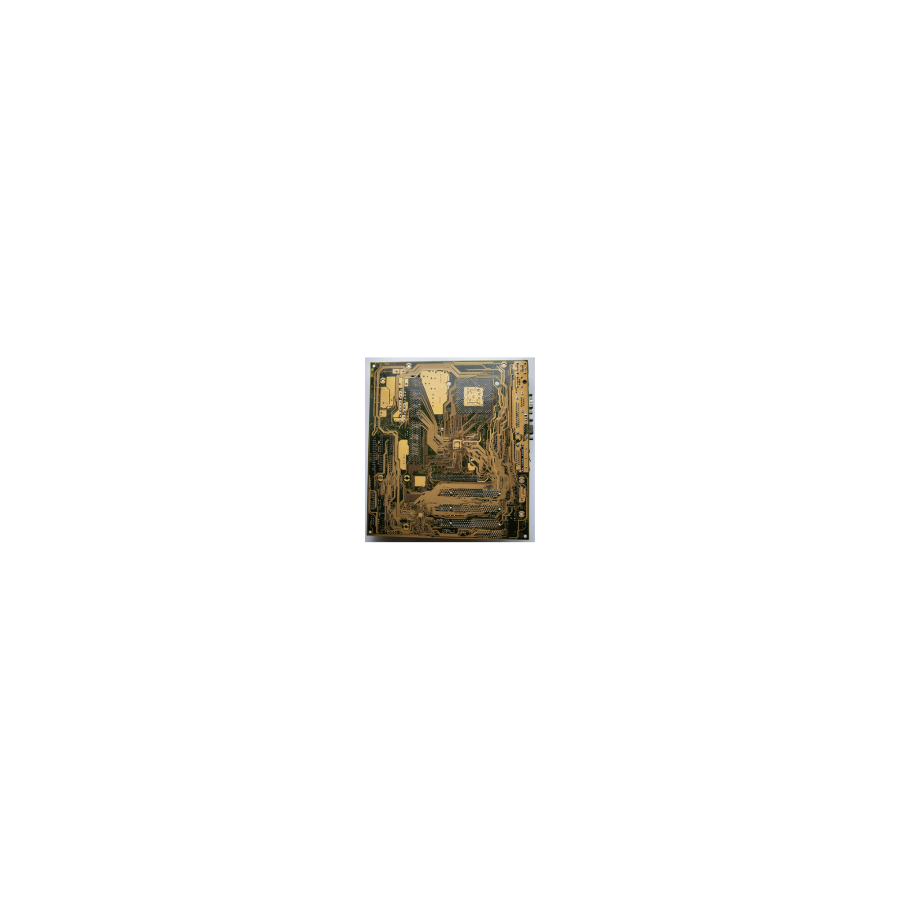

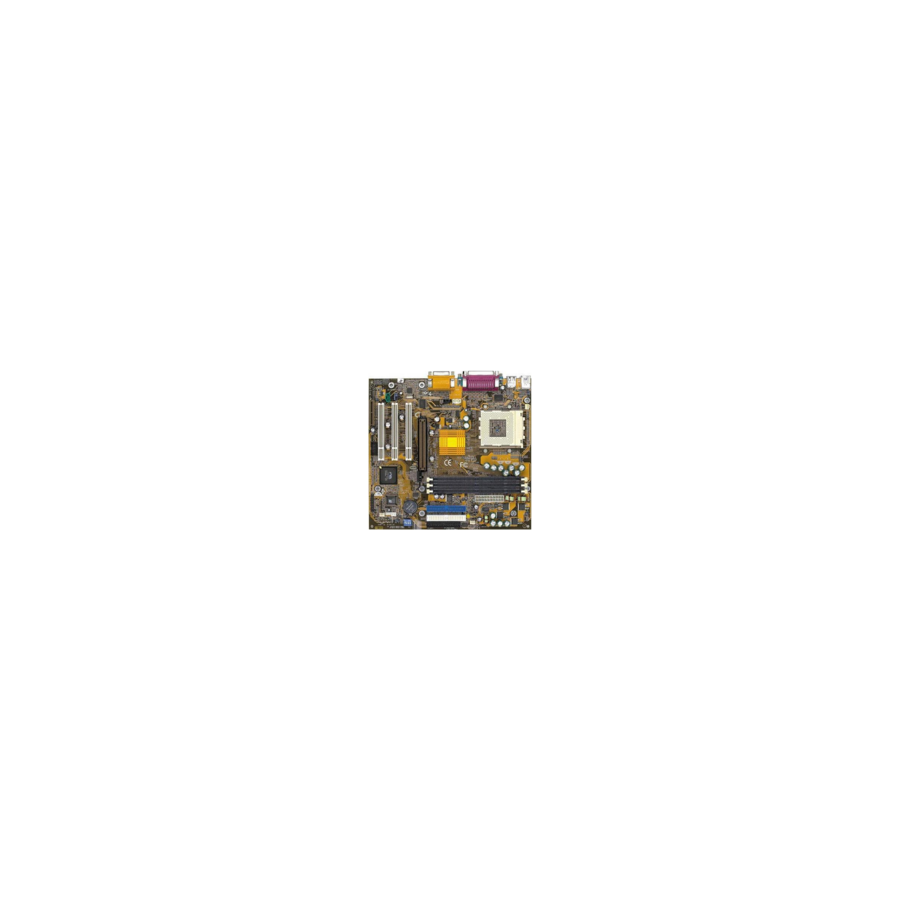

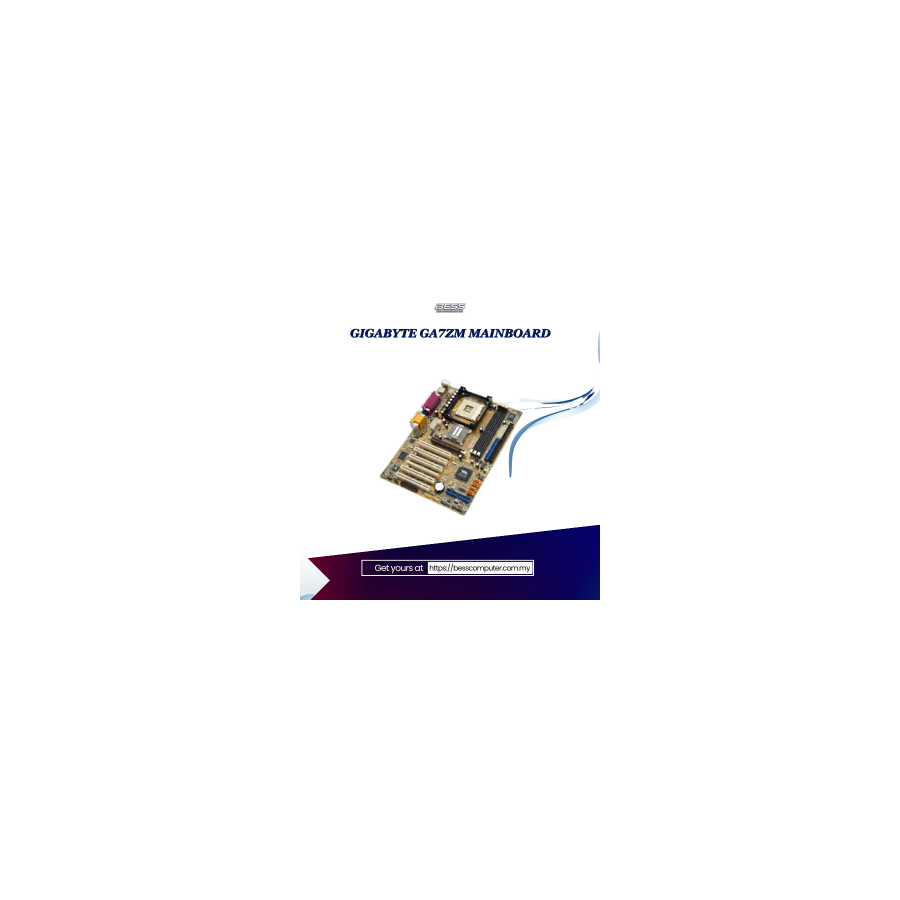

GIGABYTE GA-7ZM (SOCKET A & VIA KT133 CHIPSET)

Model: GA-7ZM (Rev 1.x / Rev 2.x) CPU: Socket A (Socket 462) for AMD Athlon™ and AMD Duron™ processors; Supports 200MHz FSB (Front Side Bus). Chipset: VIA KT133 (VT8363 North Bridge) and VIA VT686A (or VT686B in later revisions) South Bridge. Memory: 3 x 168-pin DIMM slots; Max capacity up to 1.5GB; Supports Dual Channel/Single Channel configurations of PC100 / PC133 Non-ECC SDRAM memory. Note: Overclocking frequencies are managed via native host clock settings in the BIOS up to 133MHz base. Graphic: None integrated on-board (Requires dedicated AGP or PCI Graphics Card). Expansion Slots:

• 1 x AGP (Accelerated Graphics Port) slot supporting 4X/2X mode (3.3V or 1.5V).

• 4 x PCI slots (32-bit PCI Local Bus Master compliant).

• 1 x AMR (Audio Modem Riser) slot. Storage:

• 2 x Ultra DMA 33/66 IDE ports (Supports up to 4 IDE devices including HDD, ZIP, and CD-ROM).

• 1 x Floppy Disk Drive (FDD) port supporting 2 drives (up to 2.88MB format).

• No M.2 or SATA slots (Legacy IDE architecture). LAN: None integrated on-board (Requires external PCI Network Interface Card). Audio: VIA VT686 onboard AC'97 Audio Controller with integrated AC97 Codec (VIA 1616/1617 or Realtek alternative depending on revision batch). USB Ports: Total of 4 USB 1.1 ports:

• Rear Panel I/O: 2 x USB 1.1 ports.

• Internal Headers: 1 x USB 1.1 header (Supports 2 additional USB ports via optional expansion cable).

Software Features: GIGABYTE/Manufacturer Exclusive Software

• Gigabyte Windows Utility Manager

• VIA 4-in-1 Service Pack Utility Drivers

• VIA DirectSound Audio Control Center UEFI BIOS

• Legacy AMI BIOS (Not UEFI)

• 2Mbit Flash ROM

• Enhanced ACPI feature for PC98/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB support) & Anti-Virus Functions Manufacturer Special Features:

• GIGABYTE Hardware Monitor utility support.

• Poly Fuse protection for keyboard over-current circuits.

• System health auto-detect & reporting mechanism.

• Support for Wake-on-LAN (WOL) and Internal/External Modem Ring-On.

• Support for USB Keyboard/Mouse wake up from S3 state.

• Suspend-to-RAM (STR) sleep function support.

Back I/O Ports:

• 1 x PS/2 Keyboard port

• 1 x PS/2 Mouse port

• 2 x USB 1.1 ports

• 1 x Parallel port (LPT, EPP/ECP mode)

• 2 x Serial ports (COM1 / COM2)

• 1 x Game/MIDI port

• 1 x Line-In audio jack (3.5mm)

• 1 x Line-Out audio jack (3.5mm)

• 1 x Microphone-In audio jack (3.5mm)

Internal I/O Ports:

• 1 x 20-pin ATX Power connector

• 2 x IDE connectors (Primary / Secondary UltraDMA 66/33)

• 1 x Floppy connector

• 1 x 10-pin USB 1.1 header (supports 2 optional external USB ports)

• 1 x IrDA (Infrared) TX / RX header

• 1 x CPU Fan connector (3-pin with speed detection)

• 1 x System Fan connector (3-pin with speed detection)

• 1 x Power Supply Fan connector (3-pin)

• 1 x Front Panel Audio header

• 1 x CD-In internal audio header

• 1 x AUX-In internal audio header

• 1 x Wake-on-LAN (WOL) header

• 1 x Wake-on-Ring (WOR / Internal Modem) header

• 1 x Front Panel Switch/LED cluster header (Reset, Power, HDD LED, Power LED, Speaker)

Accessories:

• 1 x I/O Shield (Standard ATX format backplate)

• 1 x IDE Ribbon cable (UltraDMA 66/33 compliant)

• 1 x Floppy Drive Ribbon cable

• 1 x Driver & Utility Support CD

• 1 x User Manual Documentation BIOS: 2Mbit Flash ROM, AMI BIOS Manageability: DMI, PnP, ACPI, WOL by PME, PXE bootable capabilities. Operating System: Windows® 95, Windows® 98/98SE, Windows® Me, Windows® NT, Windows® 2000, Windows® XP (32-bit), MS-DOS. Form Factor: Micro ATX Form Factor; 4-layer PCB design; 9.6 inches x 8.27 inches (24.4 cm x 21.0 cm)

✔ Some units – Packaging in good/new condition. ⚠ Some units – Packaging may show signs of aging (dust, minor scratches / dents, faded labels) or missing original boxes due to older stock. 🔧 Rest assured, all products are fully functional unless stated otherwise. We check quality before shipping! Thank you for your understanding.

Note: By purchasing, you AGREE that no returns/refunds will be accepted due to the declared condition.
