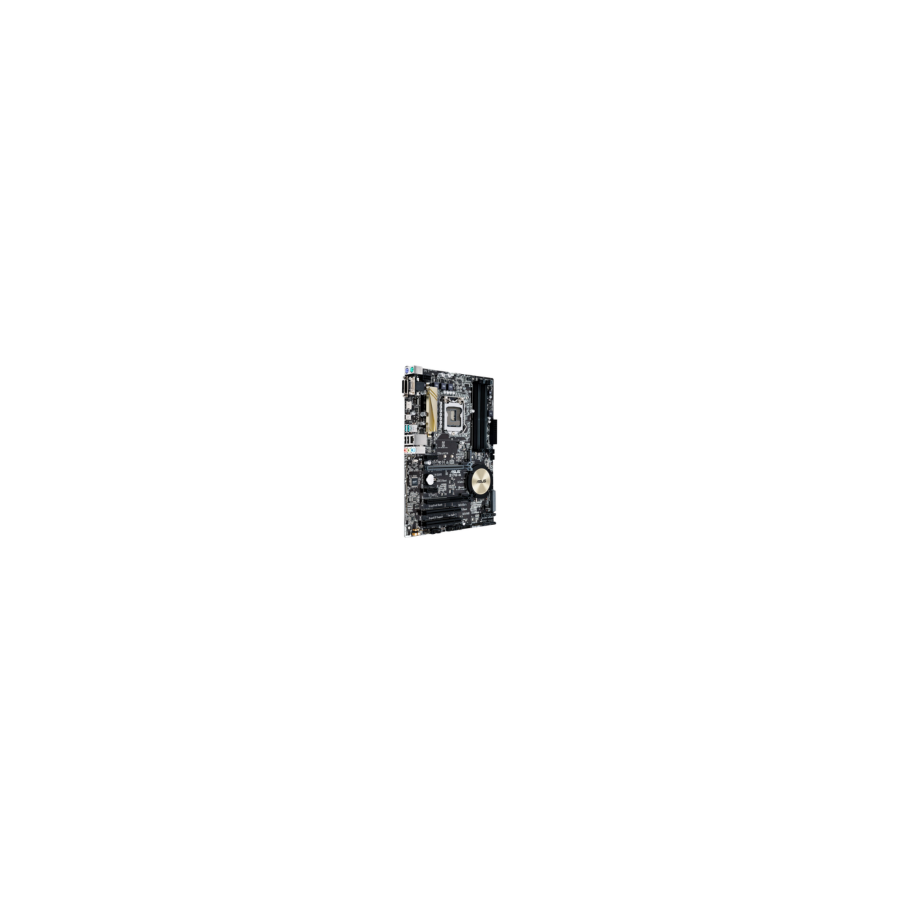

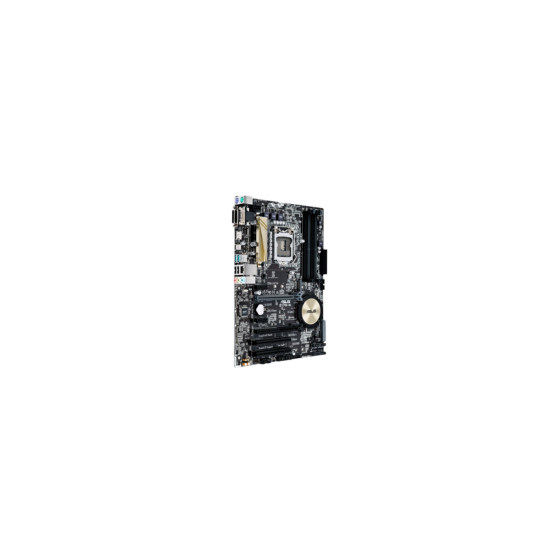

ASUSTEK Z170-K MAINBOARD (LGA1151 SOCKET Z170)

Model: Z170-K CPU: Intel® Socket LGA1151 for 6th/7th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors * Supports Intel® 14 nm CPU, Supports Intel® Turbo Boost Technology 2.0 Chipset: Intel® Z170 Memory: 4 x DIMM, Max. 64GB, DDR4 3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP) Graphic: Integrated Graphics Processor - Intel® HD Graphics support | Multi-VGA output support: HDMI/DVI-D/D-Sub ports | Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz | Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz | Supports D-Sub with max. resolution 1920 x 1200 @ 60 Hz | Maximum shared memory of 1024 MB | Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ | Supports up to 3 displays simultaneously Expansion Slots: 1 x PCIe 3.0/2.0 x16 slot (gray, x16 mode) | 1 x PCIe 3.0/2.0 x16 slot (black, max at x4 mode) | 2 x PCIe 3.0/2.0 x1 slots | 2 x PCI slots | Supports AMD Quad-GPU CrossFireX™ Technology Storage: Intel® Z170 chipset: 1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode), 1 x SATA Express port (compatible with 2 x SATA 6Gb/s ports), 6 x SATA 6Gb/s ports (gray), Support Raid 0, 1, 5, 10, Supports Intel® Rapid Storage Technology, Supports Intel® Smart Response Technology LAN: Realtek® RTL8111GR, 1 x Gigabit LAN Controller, ASUS LANGuard Audio: Realtek® ALC887 8-Channel High Definition Audio CODEC | Supports: Jack-detection, Front Panel Jack-retasking | Audio Feature: Audio Shielding, Dedicated audio PCB layers, Premium Japanese-made audio capacitors USB Ports: Rear USB Port (Total 6): 1 x USB 5Gbps Type-C port, 2 x USB 3.2 Gen 2 (USB 3.1) ports (teal blue, Type-A), 2 x USB 3.2 Gen 1 (USB 3.0) ports (blue), 2 x USB 2.0 ports | Front USB Port (Total 6): 1 x USB 3.2 Gen 1 (USB 3.0) header supports additional 2 USB 3.0 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports Software Features: ASUS Exclusive Software AI Suite 3

• Performance and Power Saving Utility Dual Intelligent Processors 5 (5-Way Optimization by Dual Intelligent Processors 5)

• DIGI+ VRM

• TPU

• EPU

• Fan Xpert 3

• Turbo App

• AI Charger

• USB 3.1 Boost

• PC Cleaner ASUS EZ Flash 3 ASUS Mobo Connect ASUS Push Notice Media Streamer Mobo Connect UEFI BIOS ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS UEFI BIOS EZ Mode Manufacturer Special Features: ASUS 5X PROTECTION II

• ASUS DIGI+ VRM - Phase digital power design

• ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention

• ASUS ESD Guards - Electrostatic discharge protection

• ASUS LANGuard - Advanced LAN surge protection

• ASUS Overvoltage Protection - World-class circuit-protecting power design

• ASUS Stainless-Steel Back I/O - 3x more durable corrosion-resistant coating ASUS EZ DIY

• ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS Q-Design

• ASUS Q-Slot

• ASUS Q-DIMM Back I/O Ports: 1 x PS/2 keyboard port (purple), 1 x PS/2 mouse port (green), 1 x HDMI, 1 x DVI-D, 1 x D-Sub (VGA), 1 x LAN (RJ45) port, 1 x USB 5Gbps Type-C, 2 x USB 3.2 Gen 2 (teal blue), 2 x USB 3.2 Gen 1 (blue), 2 x USB 2.0, 3 x Audio jacks Internal I/O Ports: 1 x USB 3.2 Gen 1 (USB 3.0) connector supports additional 2 USB 3.0 ports, 2 x USB 2.0 connectors support additional 4 USB 2.0 ports, 1 x M.2 Socket 3 with M Key (type 2242/2260/2280/22110), 1 x SATA Express connector, 6 x SATA 6Gb/s connectors, 1 x CPU Fan connector (1 x 4-pin), 2 x Chassis Fan connectors (2 x 4-pin), 1 x S/PDIF out header, 1 x 24-pin EATX Power connector, 1 x 8-pin ATX 12V Power connector, 1 x Front panel audio connector (AAFP), 1 x System panel connector, 1 x Clear CMOS jumper, 1 x 14-1 pin TPM connector, 1 x COM port header Accessories: User manual, I/O Shield, 2 x SATA 6Gb/s cables, 1 x M.2 Screw Package, 1 x Supporting DVD BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0 Manageability: WfM 2.0, DMI 3.0, WOL by PME, PXE Operating System: Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit/64-bit Form Factor: 12.0 inch x 8.8 inch ( 30.5 cm x 22.4 cm ), ATX Form Factor

✔ Some units – Packaging in good/new condition. ⚠ Some units – Packaging may show signs of aging (dust, minor scratches / dents, faded labels) or missing original boxes due to older stock. 🔧 Rest assured, all products are fully functional unless stated otherwise. We check quality before shipping! Thank you for your understanding.

Note: By purchasing, you AGREE that no returns/refunds will be accepted due to the declared condition.
