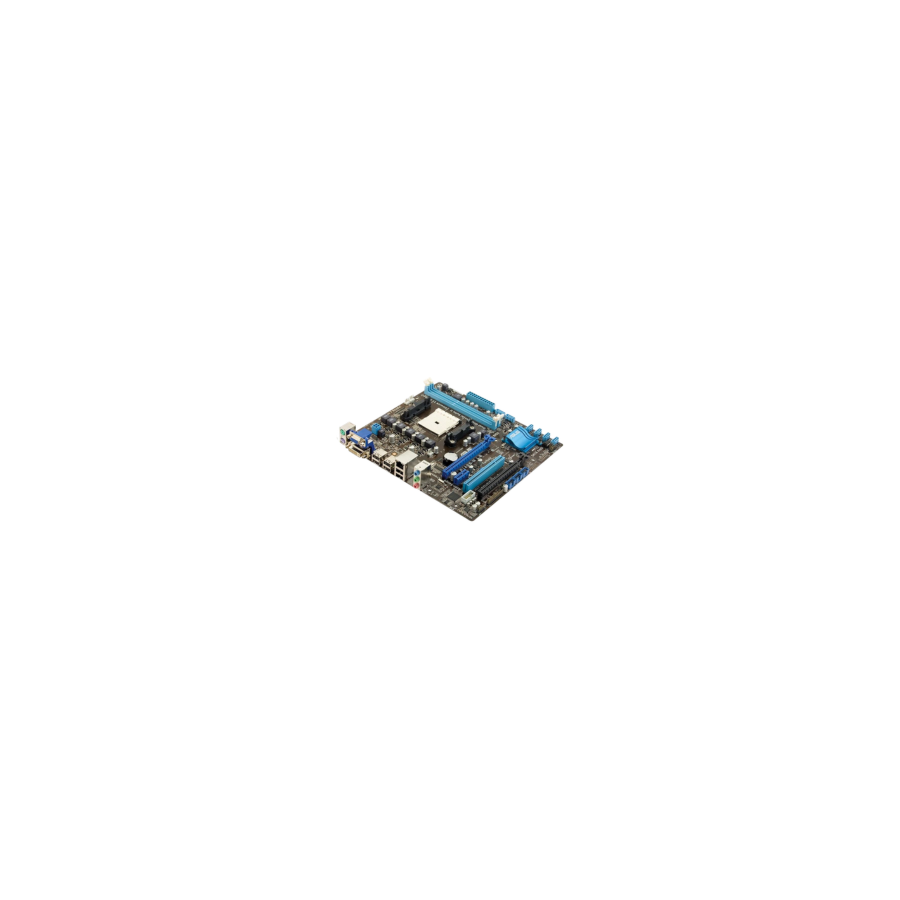

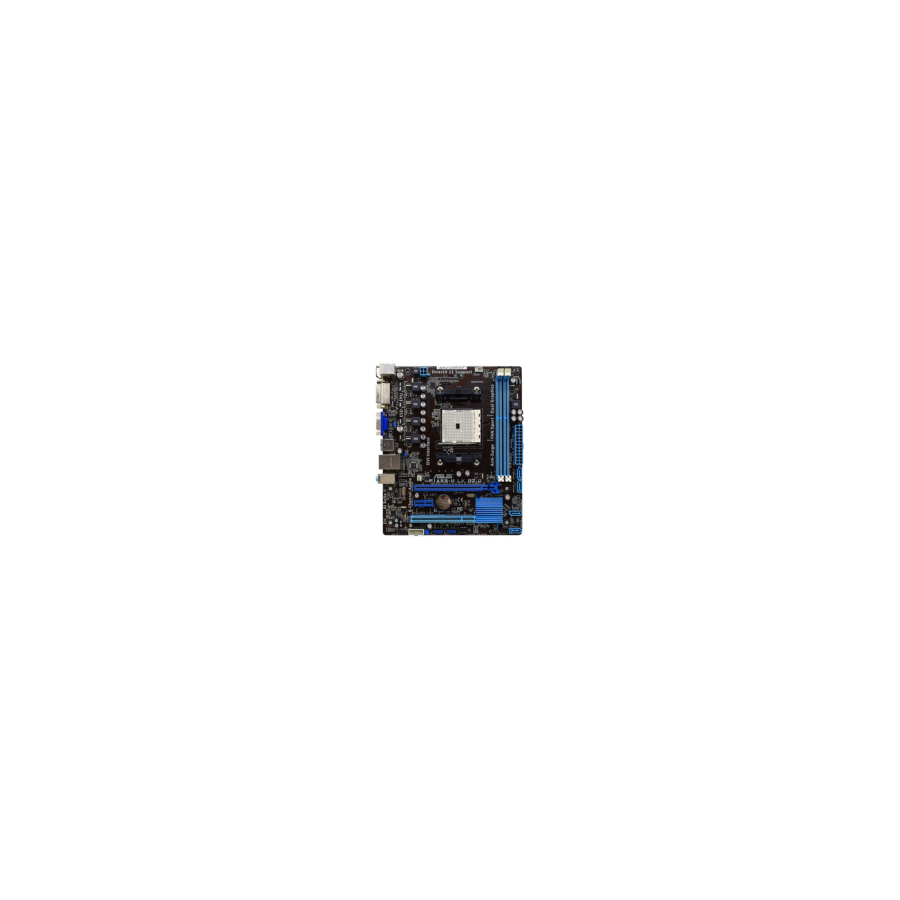

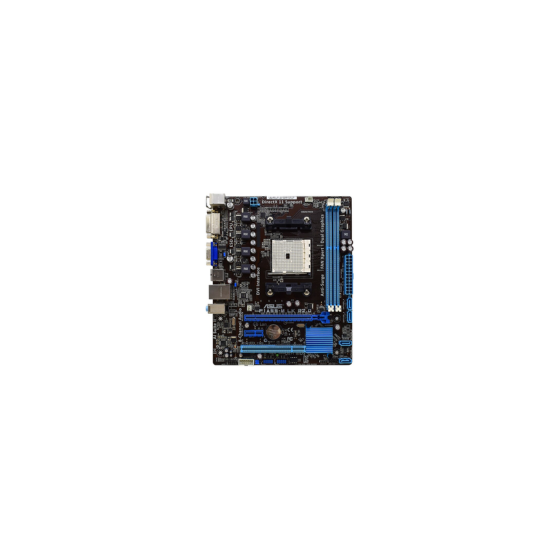

ASUSTEK F1A55-M A55 MAINBOARD (FM1 SOCKET A55)

Model: F1A55-M CPU: AMD Socket FM1 for AMD A-Series / E2-Series / Athlon™ II / Sempron™ Processors (Supports AMD Turbo Core Technology) Chipset: AMD A55 FCH (Hudson D2) Memory: 4 x DIMM, Max. 64GB, DDR3 2250(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture Graphic: Integrated AMD Radeon™ HD 6000 Series Graphics in A-series APU | Multi-VGA output support: HDMI/DVI/D-Sub ports | Supports HDMI with max. resolution 1920 x 1200 @60Hz | Supports DVI-D with max. resolution 1920 x 1200 @60Hz | Supports D-Sub with max. resolution 1920 x 1600 @60Hz | Supports AMD Dual Graphics technology Expansion Slots: 1 x PCIe 2.0 x16 (blue mode), 1 x PCIe 2.0 x16 (x4 mode, black), 1 x PCIe 2.0 x1, 1 x PCI slot Storage: AMD A55 FCH (Hudson D2) chipset: 6 x SATA 3Gb/s ports (blue), Support Raid 0, 1, 10, JBOD LAN: Realtek® RTL8111E, 1 x Gigabit LAN Controller Audio: Realtek® ALC887 8-Channel High Definition Audio CODEC | Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | Optical S/PDIF out port at back panel USB Ports: Total 14 USB ports | Rear USB Port (Total 6): 2 x USB 3.2 Gen 1 (USB 3.0) ports (blue), 4 x USB 2.0 ports | Front USB Port (Total 8): 4 x USB 2.0 headers support additional 8 USB 2.0 ports Software Features: ASUS Exclusive Software AI Suite II

• ASUS TurboV

• EPU

• Fan Xpert

• Anti-Surge

• ASUS Update UEFI BIOS ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 2

• ASUS UEFI BIOS EZ Mode Manufacturer Special Features: ASUS Hybrid DIGI+ VRM Design ASUS Power Solutions

• ASUS EPU ASUS Quiet Thermal Solution

• Stylish Fanless Design Heat Sink solution ASUS EZ DIY

• ASUS MemOK! ASUS Q-Design

• ASUS Q-Slot Back I/O Ports: 1 x PS/2 keyboard/mouse combo port, 1 x DVI-D, 1 x D-Sub, 1 x HDMI, 1 x LAN (RJ45) port, 2 x USB 3.2 Gen 1 (blue), 4 x USB 2.0, 1 x Optical S/PDIF out, 6 x Audio jacks Internal I/O Ports: 4 x USB 2.0 connectors support additional 8 USB 2.0 ports, 1 x COM port header, 6 x SATA 3Gb/s connectors, 1 x CPU Fan connector (4-pin), 1 x Chassis Fan connector (4-pin), 1 x Power Fan connector (3-pin), 1 x S/PDIF out header, 1 x 24-pin EATX Power connector, 1 x 4-pin ATX 12V Power connector, 1 x Front panel audio connector (AAFP), 1 x System panel connector, 1 x MemOK! button Accessories: User manual, I/O Shield, 2 x SATA 3Gb/s cables BIOS: 32 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a Manageability: WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE Operating System: Windows® XP / Windows® Vista / Windows® 7 / Windows® 10 Form Factor: 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm), mATX Form Factor

✔ Some units – Packaging in good/new condition. ⚠ Some units – Packaging may show signs of aging (dust, minor scratches / dents, faded labels) or missing original boxes due to older stock. 🔧 Rest assured, all products are fully functional unless stated otherwise. We check quality before shipping! Thank you for your understanding.

Note: By purchasing, you AGREE that no returns/refunds will be accepted due to the declared condition.
