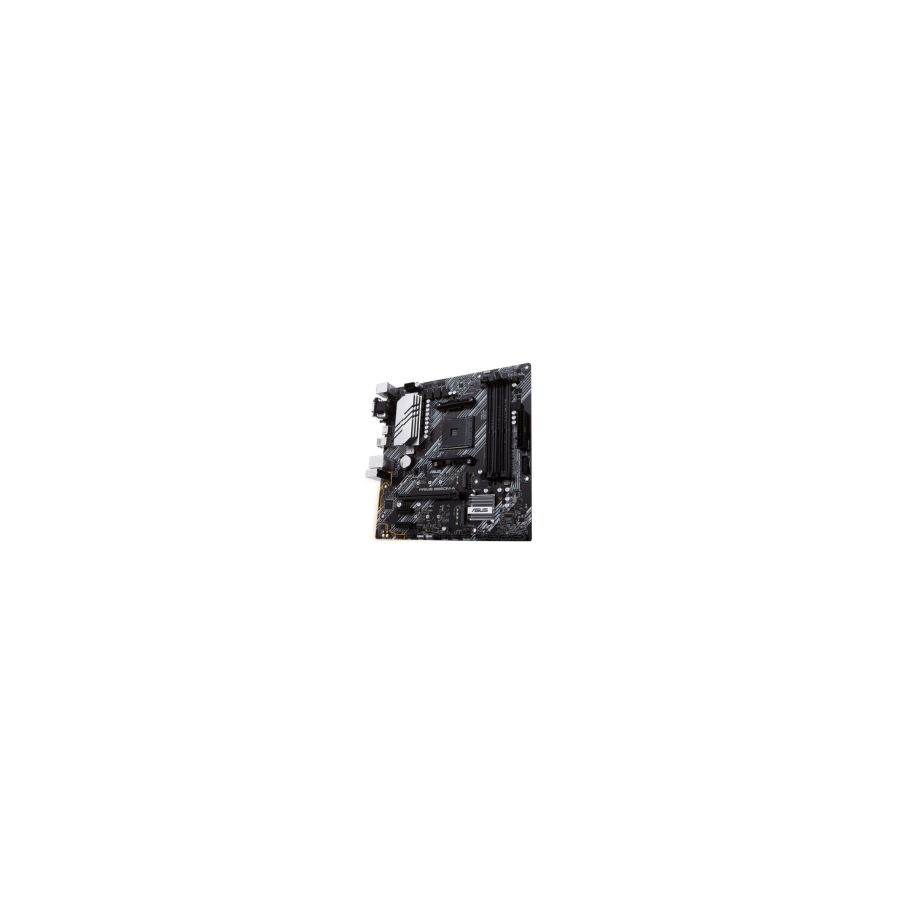

ASUSTEK PRIME B550M-A MAINBOARD (AM4 SOCKET B550)

Model: PRIME B550M-A CPU: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors * Chipset: AMD B550Memory: 4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *,ECC Memory (ECC mode) support varies by CPU.,Dual Channel Memory Architecture Graphic: 1 x HDMI 2.1(4K@60HZ), 1 x DVI-D, 1 x D-Sub *Graphics specifications may vary between CPU types.Expansion Slots: AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors: 1 x PCIe 4.0 x16 (x16 mode) | AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors: 1 x PCIe 3.0 x16 (x16 mode) | AMD B550 Chipset: 2 x PCIe 3.0 x1Storage: Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) | AMD Ryzen™ 4000 G-Series Desktop Processors: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) | AMD B550 Chipset: 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes), 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 LAN: Realtek RTL8111H 1Gb Ethernet Audio: Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC, - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback, - LED-illuminated design, - Audio Shielding, - Dedicated audio PCB layers, - Premium Japanese audio capacitors, * Choose the chassis with HD audio module in front panel to support 8-channel audio output. USB Ports: Rear USB Port (Total 6): 2 x USB 3.2 Gen 2 port(s) (2 x Type-A), 4 x USB 3.2 Gen 1 port(s) (4 x Type-A) | Front USB Port (Total 6): 2 x USB 3.2 Gen 1 port(s) (supports additional 2 Type-A), 4 x USB 2.0 port(s) (supports additional 4 Type-A)Software Features:ASUS Exclusive SoftwareArmoury Crate

• Aura Creator

• Aura SyncAI Suite 3

• Performance And Power Saving UtilityTurboV EVOEPUDigi+ VRMFan Xpert 2+

• EZ updateASUS CPU-ZAI ChargerDAEMON ToolsNorton Anti-virus software (Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode Manufacturer Special Features:ASUS 5X PROTECTION III

• ASUS DIGI+ VRM

• ASUS LANGuard

• ASUS Overvoltage Protection

• ASUS SafeSlot Core

• ASUS Stainless-Steel Back I/OASUS Q-Design

• ASUS Q-DIMM

• ASUS Q-SlotASUS Thermal Solution

• Aluminum heatsink designAURA Sync

• Standard RGB headers

• Addressable Gen 2 RGB headerASUS Lighting ControlBack I/O Ports: 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A), 4 x USB 3.2 Gen 1 (blue) Type-A, 3 x Audio jack(s), 1 x DVI-D, 1 x D-Sub, 1 x PS/2 keyboard/mouse combo port(s), 1 x HDMI, 1 x LAN (RJ45) port(s) Internal I/O Ports: 1 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s), 4 x SATA 6Gb/s connector(s), 2 x Aura RGB Strip Headers, 1 x S/PDIF out header(s), 1 x 8-pin EATX 12V Power connectors, 1 x Speaker connector, 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 2 x Chassis Fan connector(s), 1 x Addressable Gen 2 header(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x SPI TPM header, 1 x 24-pin EATX Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x Clear CMOS jumper(s), 1 x System panel connector, 1 x COM port header, 1 x M.2_1 Socket 3 with M Key (type 2242/2260/2280/22110), 1 x M.2_2 Socket 3 with M Key (type 2242/2260/2280) Accessories: 1 x M.2 SSD screw package(s), User manual, I/O Shield, 2 x SATA 6Gb/s cable(s), 1 x Supporting DVD BIOS: 256 Mb Flash ROM, UEFI AMI BIOS Manageability: WOL by PXE Operating System: Windows® 10 64-bit / Windows® 11 Form Factor: 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm), mATX Form Factor

✔ Some units – Packaging in good/new condition. ⚠ Some units – Packaging may show signs of aging (dust, minor scratches / dents, faded labels) or missing original boxes due to older stock. 🔧 Rest assured, all products are fully functional unless stated otherwise. We check quality before shipping! Thank you for your understanding.

Note: By purchasing, you AGREE that no returns/refunds will be accepted due to the declared condition.
