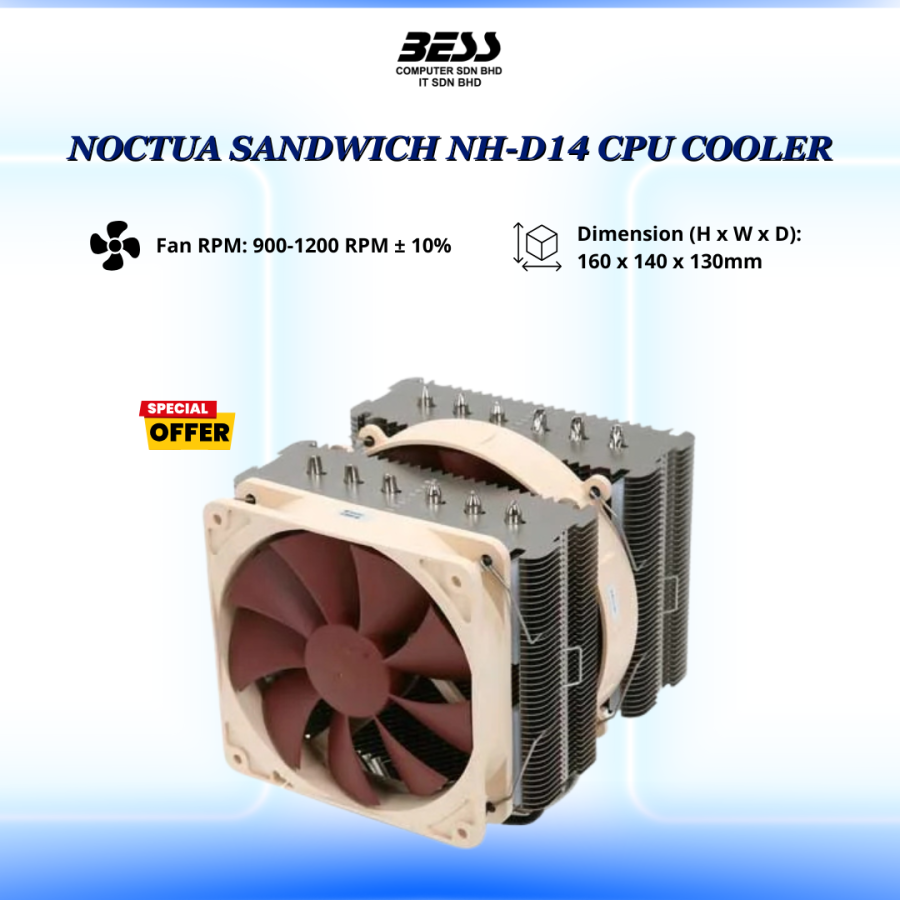

NOCTUA SANDWICH NH-D14 CPU COOLER

Cooler Specification

Socket compatibility



Intel LGA20xx (LGA2066, LGA2011-0 & LGA2011-3 Square ILM), LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) & AMD AM2, AM2+, AM3, AM3+, AM4 (included since 2019, older coolers require NM-AM4), FM1, FM2, FM2+

Height (without fan)



160 mm

Width (without fan)



140 mm

Depth (without fan)



130 mm

Height (with fan)



160 mm

Width (with fan)



140 mm

Depth (with fan)



158 mm

Weight (with fan)



1070/1240* g

Material



Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

NSPR



161

Max. TDP



see NSPR

Application



see TDP guide

Fan compatibility



140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

Scope of delivery



• 1x NF-P14 PWM premium fan
• 1x NF-P12 PWM premium fan
• 2x Low-Noise Adaptor (L.N.A.)
• Y-Split Cable
• 4x Vibration-Compensators (for using NF-P12 as case fan)
• 4x Fan screws (for using NF-P12 as case fan)
• NT-H1 high-grade thermal compound
• SecuFirm2™ Mounting Kits
• Noctua Metal Case-Badge

Warranty



6 Years

FAN Specification

Model



Noctua NF-P14 PWM & Noctua NF-P12 PWM

Bearing



SSO-Bearing

Rotational speed (+/- 10%)



1200 / 1300 RPM

Rotational speed with L.N.A. (+/- 10%)



900 / 900 RPM

Airflow



110,3 / 92,3 m³/h

Airflow with U.L.N.A.



83,7 / 63,4 m³/h

Acoustical noise



19,6 / 19,8 dB(A)

Input power (max.)



1,2 / 1,08 W

Voltage range



12 V

MTTF



> 150.000 h

✔ Some units – Packaging in good/new condition.

⚠ Some units – Packaging may show signs of aging (dust, minor scratches / dents, faded labels) or missing original boxes due to older stock.

🔧 Rest assured, all products are fully functional unless stated otherwise. We check quality before shipping! Thank you for your understanding.

Note: By purchasing, you AGREE that no returns/refunds will be accepted due to the declared condition.
